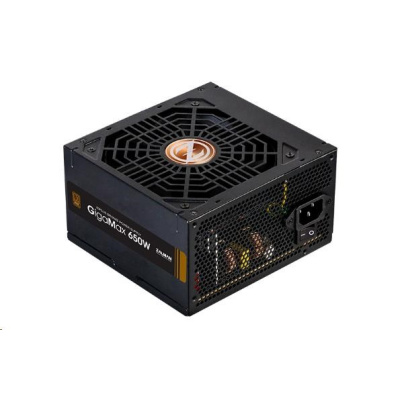

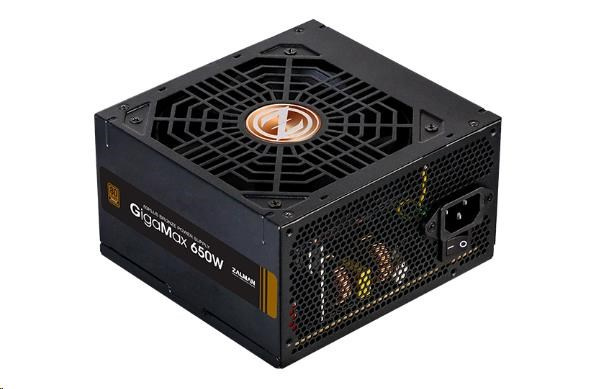

ZALMAN zdroj ZM650-GVII GigaMax, 650W eff. 88%
Popis
Parametry
| Regulatory | CB, CE, KC, EAC, RoHS |
|---|---|
| Cables (Connector) | Motherboard Cable x 1 PCI Express Cable (Connector 2ea) x 1 IDE (Connector 2ea) + FDD (Connector 1ea) Cable x 1 S-ATA Cable x 1 S-ATA / IDE Cable x 1 CPU Cable x 1 |
| Model | GigaMax 650W (ZM650-GVII) |
| Dimensions | 150(L) x 140(W) x 86(H)mm |
| Weight | 2.01kg |
| Material(s) | Intel ATX 12V V2.31 |
| Type | Intel ATX 12V V2.31 |
| PFC | Active PEC |
| Input Voltage | 200-240VAC |
| Input Current | 6A |
| Input Frequency | 50-60Hz |
| Efficiency | Max 88% @ 230VAC, Typical load |
| MTBF | 50,000 Hours |
| Operating Temperature | 0~40°C |
| Protection | OCP / OVP / OPP / OTP / UVP / SCP |
.
Formát zdroje:
ATX
Konektory:
PCIe 8-pin
Konektory:
SATA 15-pin
Konektory:
FDD
Konektory:
Molex
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Bronze
Modulární kabeláž:
Ne
Výkon zdroje (W):
650
