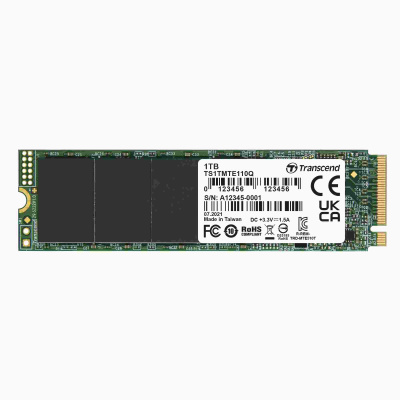

TRANSCEND SSD 110Q 1TB, M.2 2280, PCIe Gen3x4, NVMe, M-Key, QLC, DRAM-less
PCIe M.2 SSDs
PCIe SSD 110Q
Transcend's PCIe® SSD 110Q utilizes top-notch technology QLC 3D NAND to enhance storage density that supports read/write intensive workloads. Implemented with PCI Express® Gen3 x4 high-speed interface, the read speed is up to 2,000 MB/s while write speed is up to 1,500 MB/s. To upgrade your computing devices, SSD 110Q is the most economical solution for all!
Best performance in the extreme
Transcend's PCIe SSD 110Q follows NVMe 1.3 and utilizes the PCIe Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in compelling performance of up to 2,000MB/s read and 1,500MB/s write.
Note: Performance is based on CrystalDiskMark v5.0.2.
Less is more
Leveraging QLC 3D NAND technology, PCIe SSD 110Q stacks 4-bit-per-cell vertically to enhance the storage density. QLC NAND supports read/write intensive applications, and leads SSD 110Q to become one of the flash memories with the highest density in the market. More than that, 500GB and 1 TB storage options are available. Users can store as much data as they want!
Understanding the NVMe PCIe interface
NVMe® (or NVM Express®) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCIe®(PCI Express®) solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.
Low power, high efficiency
PCIe SSD 110Q not only optimizes the transfer speeds and storage density, its low-power consumption also makes the device even more lasting and efficient. The most economical solution is up to you to choose.
Transcend SSD Scope software
To keep your Transcend SSD running fast and error-free, Transcend's SSD Scope software application is available for download free of charge. Monitor your SSD's health status with S.M.A.R.T. technology, enable the TRIM command for optimum write speeds, keep your SSD's firmware up-to-date, and migrate data from your original drive to a new SSD with just a few clicks.
Guaranteed quality
To ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.
Specifications
Appearance | |
| Dimensions | Double-sided 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14") |
|---|---|
| Weight | 8 g (0.28 oz) |
| Type |
|
Interface | |
| Bus Interface |
|
Storage | |
| Flash Type |
|
| Capacity |
|
Operating Environment | |
| Operating Temperature | 0°C (32°F) ~ 70°C (158°F) |
| Operating Voltage |
|
Performance | |
| Sequential Read/Write (CrystalDiskMark) |
|
| 4K Random Read/Write (IOmeter) |
|
| Terabytes Written (TBW) |
|
| Mean Time Between Failures (MTBF) | 2,000,000 hour(s) |
| Drive Writes Per Day (DWPD) | 0.27 (3 yrs) |
| Note |
|
Warranty | |
| Certificate |
|
| Warranty |
|
| Warranty Policy |
|
System Requirement | |
| Operating System |
|
| Note |
|
Technology | |
| S.M.A.R.T. | |
| Advanced Garbage Collection | |
| RAID Engine |
|
| LDPC Coding | |
| DRAM Cache |
|
Order Information
- TS500GMTE110Q
- TS1TMTE110Q
