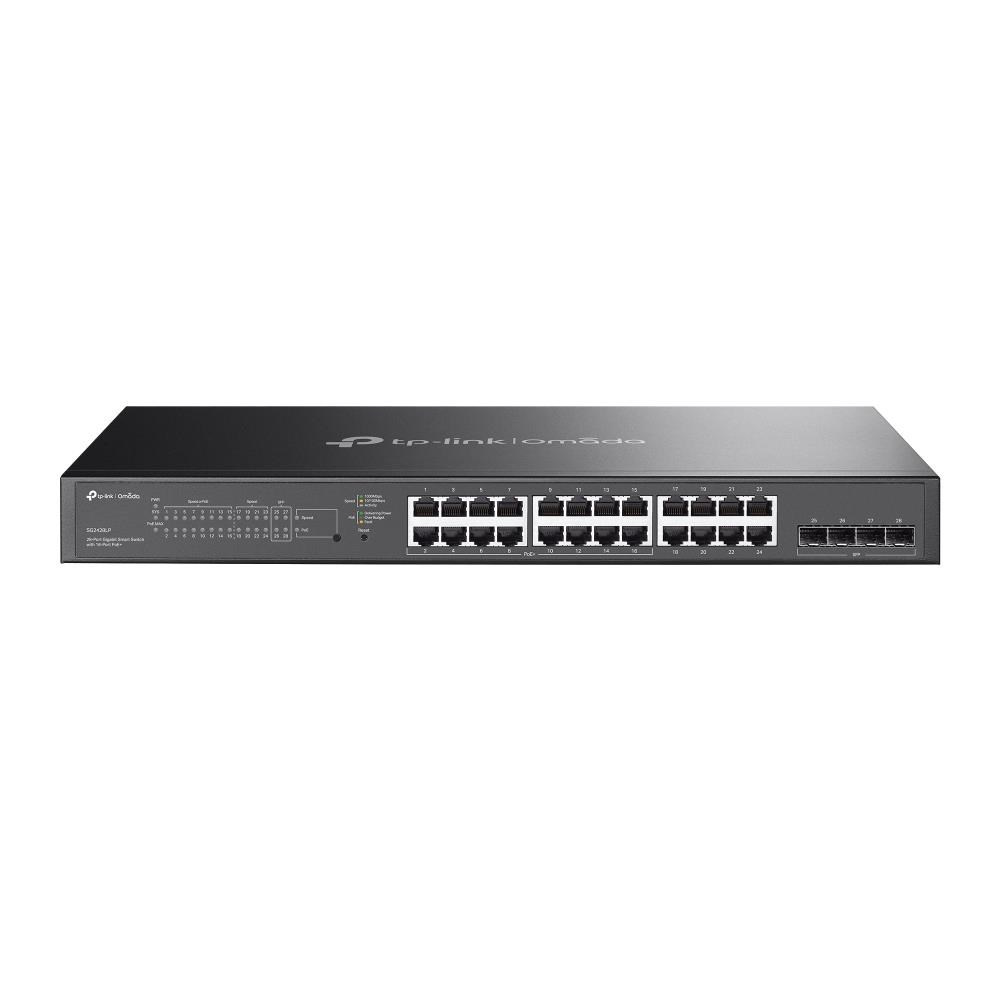

    TP-Link OMADA switch SG2428LP (24xGbE,4xSFP,16xPoE+,150W,fanless)

    Přidat do oblíbenýchTP-Link OMADA switch SG2428LP (24xGbE,4xSFP,16xPoE+,150W,fanless)
    Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit ethernet + Gigabit optika; Počet portů LAN:24; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):150; Počet SFP portů:4; Maximální počet portů:28.

    Kód produktu324255
    Part numberSG2428LP
    EAN produktu8885020620832

    Záruka:60 Měsíc(ů)
    Výrobce:TP-link
    Skladová dostupnost:skladem u dodavatele, expedice do 24 hodin
    Vaše cena bez DPH
    7951.24 Kč
    Vaše cena včetně DPH
    9621 Kč






    Přidat produkt k porovnání >
    Popis
    Parametry

    TP-Link OMADA switch SG2428LP

    Omada 28portový gigabitový inteligentní switch s 32 porty PoE+

    • 16× gigabitových portů 802.3af/at PoE+
    • 8× gigabitových RJ45 portů bez PoE a 4× gigabitové SFP sloty
    • Celkový rozpočet PoE 150 W s výkonem až 30 W na port*
    • Centralizovaná cloudová správa přes web nebo aplikaci Omada
    • Samostatná správa přes web, CLI, SNMP a RMON
    • Statický routing pomáhá směrovat interní provoz pro vyšší efektivitu
    • VLAN, ACL, QoS a IGMP Snooping
    • Design bez ventilátoru pro tichý provoz
    • Odolné kovové pouzdro a možnost montáže do racku

    Zjistit více o technologii TP-Link PoE >

    Zjistit více o Omada Cloud SDN>?

    Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg2428lp/

    Technické specifikace

    HARDWARE FEATURES
    Interface • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    • 8× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    • 4× Gigabit SFP Slots
    Fan Quantity Fanless
    Physical Security Lock ?
    Power Supply 100-240 V AC~50/60 Hz
    PoE Ports (RJ45) • Standard: 802.3at/af compliant
    • PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
    • PoE Power Budget: 150 W*
    Dimensions ( W x D x H ) 17.3×8.7×1.73 in (440×220×44 mm)
    Mounting Rack Mountable
    Max Power Consumption 184.7 W (110V/60Hz) (with 150 W PD connected)
    Max Heat Dissipation 628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected)
    PERFORMANCE
    Switching Capacity 56 Gbps
    Packet Forwarding Rate 41.66 Mpps
    MAC Address Table 8 K
    Packet Buffer Memory 4.1 Mbit
    Jumbo Frame 9 KB
    SOFTWARE FEATURES
    Quality of Service • 802.1p CoS/DSCP priority
    • 8 priority queues
    • Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
    • Queue Weight Config
    • Bandwidth Control: Port/Flow-based Rating Limit
    • Smoother Performance
    • Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
    L2 and L2+ Features • 16 IP Interfaces: Support IPv4/IPv6 Interface
    • Static Routing: 32 IPv4/IPv6 Static Routes
    • DHCP Server
    • DHCP Relay
    - DHCP Interface Relay
    - DHCP VLAN Relay
    • DHCP L2 Relay
    • Static ARP
    • Proxy ARP
    • Gratuitous ARP
    • Link Aggregation
    • Spanning Tree Protocol
    • Loopback Detection
    • 802.3x Flow Control
    • Mirroring
    • Device Link Detect Protocol (DLDP)
    • 802.1ab LLDP/ LLDP-MED
    L2 Multicast • 511 IPv4, IPv6 shared multicast groups
    • IGMP Snooping
    • Multicast VLAN Registration (MVR)
    • Multicast Filtering
    • Limited IP Multicast (256 profiles and 16 entries per profile)
    Advanced Features • Automatic Device Discovery†
    • Batch Configuration†
    • Batch Firmware Upgrading†
    • Intelligent Network Monitoring†
    • Abnormal Event Warnings†
    • Unified Configuration†
    • Reboot Schedule†
    VLAN • VLAN Group: Max. 4K VLAN Groups
    • 802.1Q tag VLAN
    • MAC VLAN: 12 Entries
    • Protocol VLAN
    • GVRP
    • Voice VLAN
    Access Control List • Support up to 230 entries
    • Time-based ACL
    • MAC ACL
    • IP ACL
    • IPv6 ACL
    • Combined ACL
    • Rule Operation: Permit/Deny
    • Policy Action
    - Mirroring
    - Redirect
    - Rate Limit
    - QoS Remark
    • ACL Rules Binding
    - Port Binding
    - VLAN Binding
    Security • IP-MAC-Port Binding
    • AAA
    • 802.1X
    - Port based authentication
    - MAC (Host) based authentication
    - Authentication Method includes PAP/EAP-MD5
    - MAB
    - Guest VLAN
    - Radius authentication and accountability support
    • IP/IPv6-MAC Binding
    - 512 Binding Entries
    - DHCP Snooping
    - DHCPv6 Snooping
    - ARP Inspection
    - ND Detection
    • IP Source Guard
    - 253 Entries
    - Source IP+Source MAC
    • IPv6 Source Guard
    - 183 Entries
    - Source IPv6 Address+Source MAC
    • DoS Defend
    • Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
    • Port Isolation
    • Secure web management through HTTPS with SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
    • IP/Port/MAC-based access control
    IPv6 • IPv6 Static Routing and ACL
    • IPv6 Dual IPv4/IPv6
    • IPv6 Interface
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP) version 6
    • TCPv6/UDPv6
    • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
    MIBs • MIB II (RFC1213)
    • Bridge MIB (RFC1493)
    • P/Q-Bridge MIB (RFC2674)
    • Radius Accounting Client MIB (RFC2620)
    • Radius Authentication Client MIB (RFC2618)
    • Remote Ping, Traceroute MIB (RFC2925)
    • Support TP-Link private MIBs
    • RMON MIB(RFC1757, rmon 1,2,3,9)
    MANAGEMENT
    Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller
    • Omada Software Controller
    Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
    Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
    Management Features • Web-based GUI
    • Command Line Interface (CLI) through telnet
    • SNMPv1/v2c/v3
    • SNMP Trap/Inform
    • RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • SNTP
    • System Log
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • SG2452LP
    • Power Cord
    • Quick Installation Guide
    • Rackmount Kit
    • Rubber Feet
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
    Environment • Operating Temperature: 0–40 ? (32–104 ?);
    • Storage Temperature: -40–70 ? (-40–158 ?)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
    .
    Technologie: Gigabit ethernet + Gigabit optika
    Management: SNMP/RMON
    Management: Web
    Vlastnosti switche: Funkce POE po portech
    Provedení: Rack mounted 19"
    Přenosová rychlost LAN (Mb/s): 1000
    Funkce: QoS (Quality of service)
    Funkce: VLAN (virtual local area network)
    Funkce: L2
    Funkce: DHCP snooping
    Funkce: Web management/Smart switch
    Funkce: PoE (Power over ethernet)
    Podporované standardy PoE: 802.3af
    Podporované standardy PoE: 802.3at
    Ventilátor: Ne
    Počet portů LAN: 24
    Maximální počet portů: 28
    Počet SFP portů: 4
    PoE budget (W): 150
    Počet PoE+ portů: 16
