TP-Link OMADA switch ES210X-M2 (8x2,5GbE,2xSFP+,fanless)
Popis
Parametry

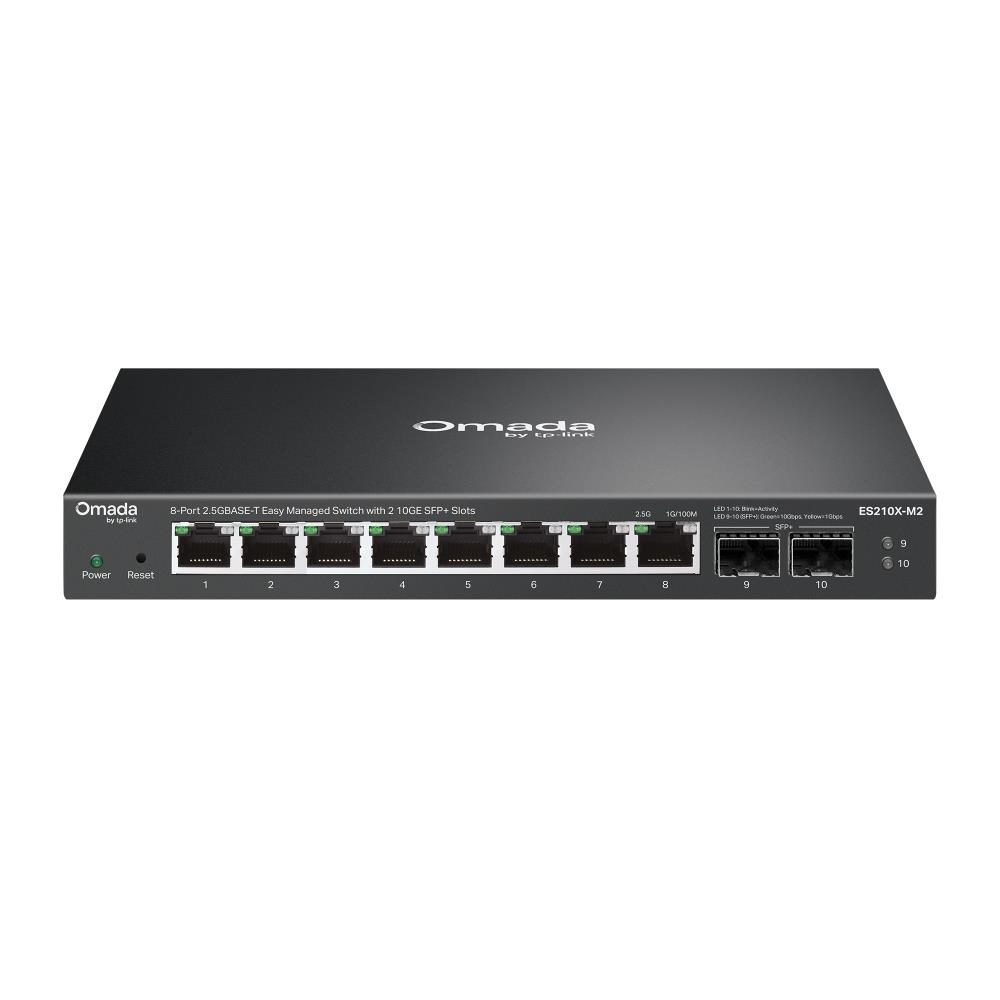

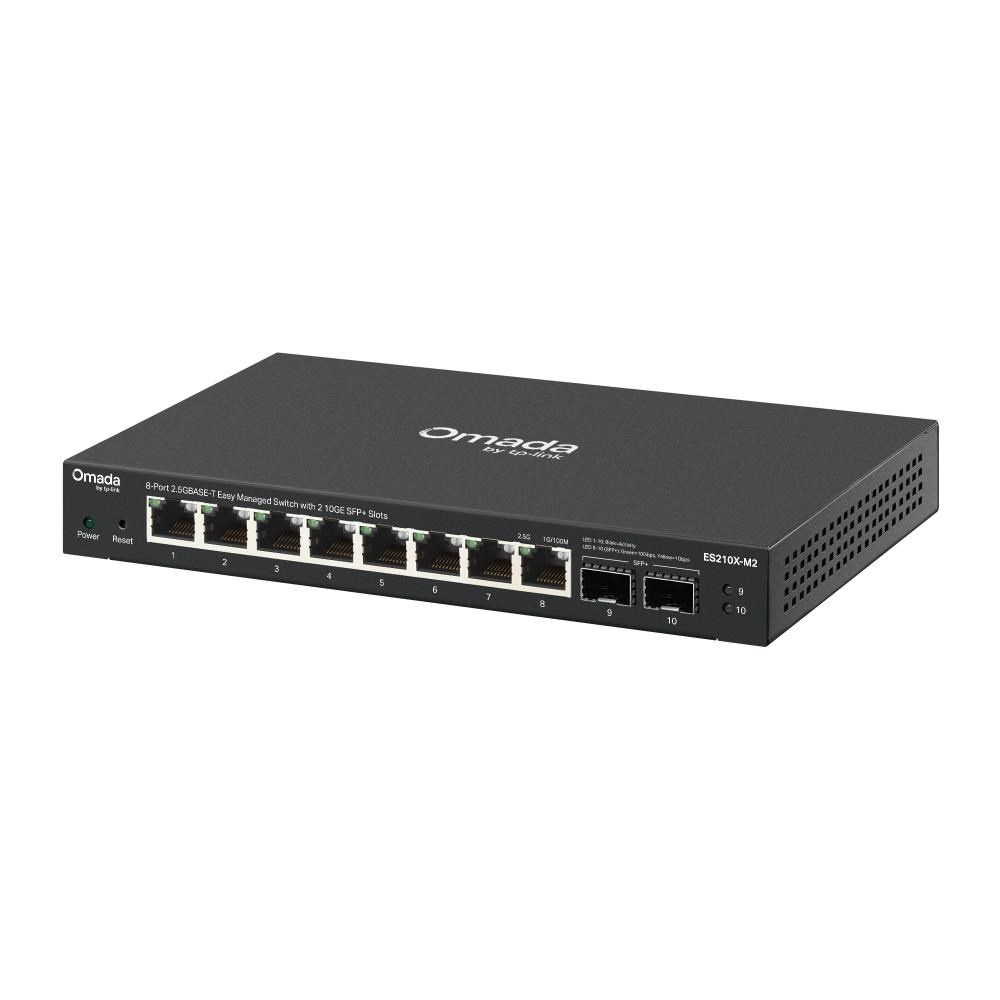

TP-Link OMADA switch ES210X-M2
Omada 8portový Easy Managed Switch 2.5G BASE-T se 2 sloty 10GE SFP+
- 8× 2,5Gb/s RJ45 portů
- 2× 10Gb/s sloty SFP+
- Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchá konfigurace dalších funkcí
- Centralizovaná cloudová správa prostřednictvím webu nebo aplikace Omada†
- Automatická prevence smyček, VLAN a IGMP Snooping
- Bezventilátorový design pro tichý provoz

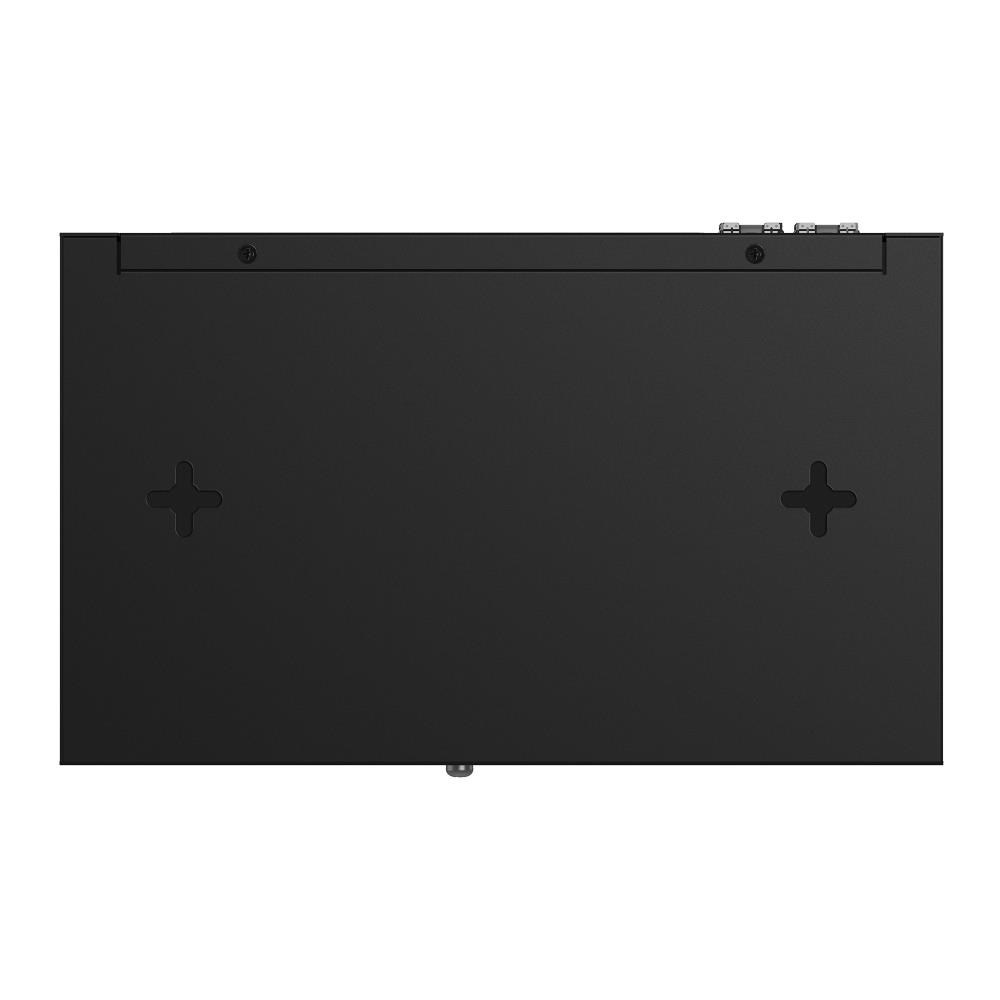

- Odolné kovové šasi a možnost umístění na stůl nebo montáže na zeď
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-agile/es210x-m2
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 8× 2.5 Gbps RJ45 Ports • 2× 10 Gbps SFP+ Slots • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | ? |
| Power Supply | DC Power Adapter (Output: 12 VDC / 1.5 A) |
| Dimensions ( W x D x H ) | 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection | ±6 kV |
| PERFORMANCE | |
| Packet Buffer Memory | 640 KB |
| Jumbo Frame | 10 KB |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16K |
| SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • ES210X-M2 • Power Adapter • Rubber Feet • Installation Guide |
| Environment | • Operating Temperature: -5?~40? (23?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
Technologie:
2,5 Gigabit ethernet + 10 Gigabit optika
Management:
Web
Provedení:
Desktop
Funkce:
QoS (Quality of service)
Funkce:
VLAN (virtual local area network)
Funkce:
DHCP snooping
Funkce:
L2
Funkce:
Web management/Smart switch
Ventilátor:
Ne
Počet portů LAN:
8,000000000
Přenosová rychlost LAN (Mb/s):
2500,000000000
Maximální počet portů:
10,000000000
Počet SFP+ portů:
2,000000000
Přepínací kapacita (Gb/s):
80,000000000
Propustnost (Mp/s):
59,520000000
