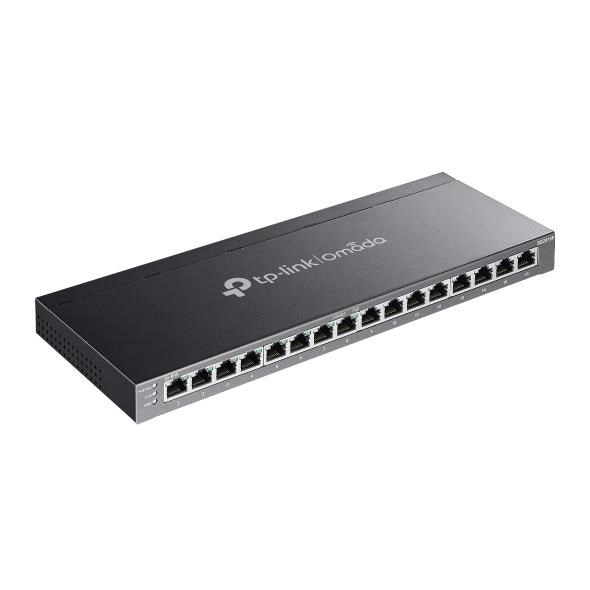

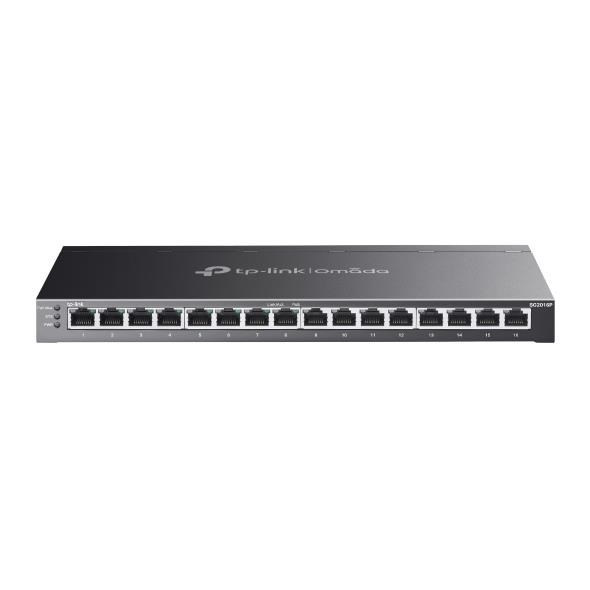

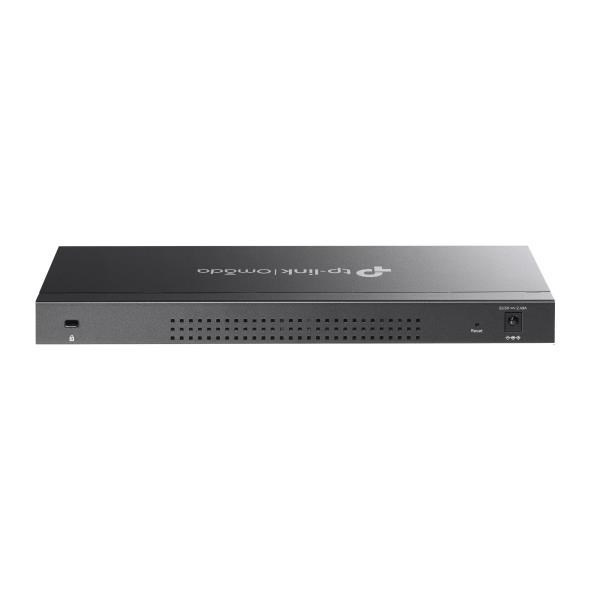

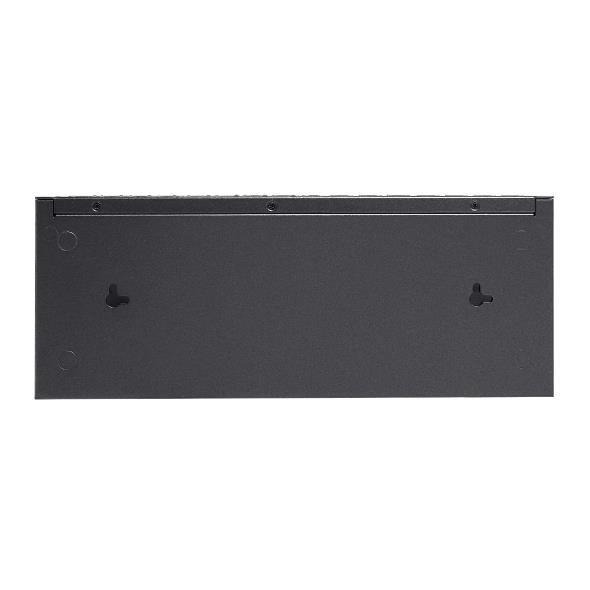

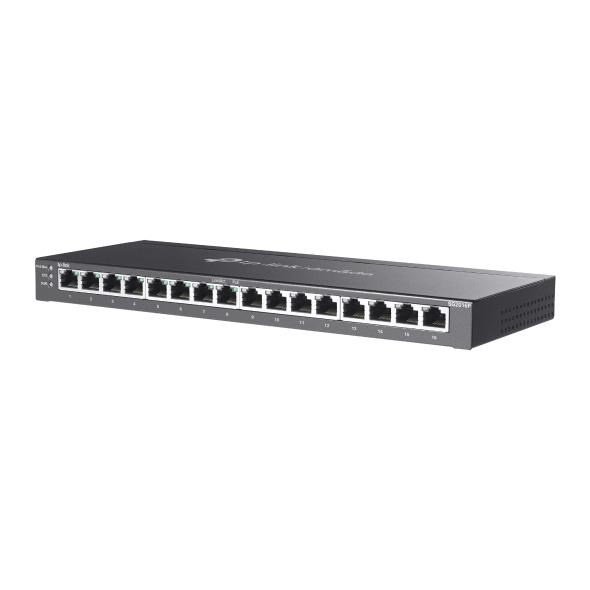

    TP-Link OMADA JetStream switch SG2016P (16xGbE, 8xPoE+, 120W, fanless)

    Přidat do oblíbenýchTP-Link OMADA JetStream switch SG2016P (16xGbE, 8xPoE+, 120W, fanless)
    Provedení:Desktop; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps; Počet portů LAN:16; Počet portů LAN:16; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):120; Maximální počet portů:16; Počet PoE+ portů:8.

    Kód produktu324115
    Part numberSG2016P
    EAN produktu4897098689493

    Záruka:60 Měsíc(ů)
    Výrobce:TP-link
    Skladová dostupnost:skladem u dodavatele, expedice do 24 hodin
    Vaše cena bez DPH
    5248.76 Kč
    Vaše cena včetně DPH
    6351 Kč






    Přidat produkt k porovnání >
    Popis
    Parametry

    TP-Link JetStream switch SG2016P

    16portový gigabitový smart switch JetStream s 8 porty PoE+

    • 120 W PoE Budget: 8 × 802.3at/af kompatibilních PoE+ portů s celkovým napájením 120 W.
    • Plně gigabitové porty: 8 × gigabitové porty PoE+ a 8× gigabitové porty bez PoE poskytují vysokorychlostní připojení.
    • Integrováno do Omada SDN: Zero-Touch Provisioning, centralizovaná správa cloudu a inteligentní monitorování.
    • Centralizovaná správa: Přístup ke cloudu a aplikace Omada pro maximální pohodlí a snadnou správu.
    • Robustní bezpečnostní strategie: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication a další.
    • Optimalizujte hlasové a video aplikace: L2/L3/L4 QoS a IGMP snooping.

    Learn more about TP-Link PoE technology >

    Learn more about Omada Cloud SDN>?

    Stránky produktu: https://www.tp-link.com/uk/business-networking/omada-sdn-switch/tl-sg2016p/

    Technické specifikace

    HARDWARE FEATURES
    Standards and Protocols IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
    Interface • 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
    • Auto-Negotiation/Auto MDI/MDIX
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
    Fan Quantity Fanless
    Power Supply • External Power Adapter (Output: 53.5 VDC/ 1.31 A)
    PoE Ports (RJ45) • Standard: 802.3af/at compliant
    • PoE Ports: 8 Ports
    • Power Supply: 120 W*
    Dimensions ( W x D x H ) 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
    Max Power Consumption 146.5 W (110 V/60 Hz) (with 120 W PD connected)
    Max Heat Dissipation 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)
    PERFORMANCE
    Bandwidth/Backplane 16 Gbps
    MAC Address Table 8k
    Packet Buffer Memory 4.1 Mbit
    Jumbo Frame 9 KB
    SOFTWARE FEATURES
    Quality of Service • 802.1p CoS/DSCP priority
    • 8 priority queues
    • Priority Schedule Mode
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    • Queue Weight Config
    • Bandwidth Control
    - Port/Flow-based Rating Limit
    • Smoother Performance
    • Storm Control
    - Multiple Control Modes(kbps/ratio)
    - Broadcast/Multicast/Unknown-Unicast Control
    L2 and L2+ Features • DHCP Relay
    - DHCP VLAN Relay
    • DHCP L2 Relay
    • Link Aggregation
    - Static link aggregation
    - 802.3ad LACP
    - Up to 8 aggregation groups and up to 8 ports
    per group
    • Spanning Tree Protocol
    - 802.1D STP
    - 802.1w RSTP
    - 802.1s MSTP
    - STP Security: TC Protect, BPDU Filter/Protect,
    Root Protect
    • Loopback Detection
    • Flow Control
    - 802.3x Flow Control
    • Mirroring
    - Port Mirroring
    - CPU Mirroring
    - One-to-One
    - Many-to-One
    - Flow-Based
    - Ingress/Egress/Both
    • Device Link Detect Protocol (DLDP)
    • 802.1ab LLDP/ LLDP-MED
    L2 Multicast • 511 IPv4, IPv6 shared multicast groups
    • IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Fast Leave
    - IGMP Snooping Querier
    - Static Group Config
    • Multicast VLAN Registration (MVR)
    • Multicast Filtering
    • MLD Snooping
    - MLD v1/v2 Snooping
    - Fast Leave
    - MLD Snooping Querier
    - Static Group Config
    • Limited IP Multicast (256 profiles and 16 entries per profile)
    IPv6 Support • IPv6 Dual IPv4/IPv6
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP)
    version 6
    • TCPv6/UDPv6
    • IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet (v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    VLAN • VLAN Group
    - Max. 4K VLAN Groups
    • 802.1Q tag VLAN
    • MAC VLAN: 12 Entries
    • Protocol VLAN
    • GVRP
    • Voice VLAN
    Access Control List • Support up to 230 entries
    • Time-Range
    - Time Slice
    - Week Time-Range
    - Absolute Time-Range
    - Holiday
    • Time-based ACL
    • MAC ACL
    - Source MAC
    - Destination MAC
    - VLAN ID
    - User Priority
    - Ether Type
    • IP ACL
    - Source IP
    - Destination IP
    - IP Protocol
    - TCP Flag
    - TCP/UDP Source Port
    - TCP/UDP Destination Port
    - DSCP/IP TOS
    • IPv6 ACL
    • Combined ACL
    • Rule Operation
    - Permit/Deny
    • Policy Action
    - Mirror
    - Rate Limit
    - Redirect
    - QoS Remark
    • ACL Rules Binding
    - Port Binding
    - VLAN Binding
    • Actions for flows
    - Mirror (to supported interface)
    - Redirect (to supported interface)
    - Rate Limit
    - QoS Remark
    Security • AAA
    • 802.1X
    - Port-based authentication
    - MAC (Host) based authentication
    - Authentication Method includes PAP/EAP-MD5
    - MAB
    - Guest VLAN
    - Support Radius authentication and
    accountability
    • IP/IPv6-MAC Binding
    - 512 Binding Entries
    - DHCP Snooping
    - DHCPv6 Snooping
    - ARP Inspection
    - ND Detection
    • IP Source Guard
    - 253 Entries
    - Source IP+Source MAC
    • IPv6 Source Guard
    - 183 Entries
    - Source IPv6 Address+Source MAC
    • DoS Defend
    • Static/Dynamic/Permanent Port Security
    - Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control
    - kbps/ratio control mode
    • Port Isolation
    • Secure web management through HTTPS with
    SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI)
    management with SSHv1/SSHv2
    • IP/Port/MAC-based access control
    Advanced Features • Automatic Device Discovery
    • Batch Configuration
    • Batch Firmware Upgrading
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    MIBs • MIB II (RFC1213)
    • Bridge MIB (RFC1493)
    • P/Q-Bridge MIB (RFC2674)
    • Radius Accounting Client MIB (RFC2620)
    • Radius Authentication Client MIB (RFC2618)
    • Remote Ping, Traceroute MIB (RFC2925)
    • Support TP-Link private MIBs
    • RMON MIB(RFC1757, rmon 1,2,3,9)
    MANAGEMENT
    Omada App Yes, through
    • Omada Cloud-Based Controller
    • OC300
    • OC200
    • Omada Software Controller
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud Access Yes, through
    • Omada Cloud-Based Controller
    • OC300
    • OC200
    • Omada Software Controller
    Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
    Management Features • Web-based GUI
    • Command Line Interface (CLI) through telnet
    • SNMPv1/v2c/v3
    • SNMP Trap/Inform
    • RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • SNTP
    • System Log
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • TL-SG2016P
    • Power Adapter
    • Installation Guide
    • Rubber Feet
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
    Environment • Operating Temperature: 0–40 °C (32–104 °F);
    • Storage Temperature: -40–70 °C (-40–158 °F)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing

    .
    Maximální počet portů: 16
    Technologie: Gigabit Ethernet 1000Mbps
    Management: Web
    Management: SNMP/RMON
    Vlastnosti switche: Funkce POE po portech
    Provedení: Desktop
    PoE budget (W): 120
    Přenosová rychlost LAN (Mb/s): 1000
    Funkce: Web management/Smart switch
    Funkce: QoS (Quality of service)
    Funkce: L2
    Funkce: VLAN (virtual local area network)
    Funkce: DHCP snooping
    Funkce: PoE (Power over ethernet)
    Podporované standardy PoE: 802.3af
    Podporované standardy PoE: 802.3at
    Počet portů LAN: 16
    Ventilátor: Ne
    Počet PoE+ portů: 8
    Počet portů LAN: 16
    Maximální počet portů: 16
    PoE budget (W): 120
    Počet PoE+ portů: 8
