TP-Link ER706W OMADA VPN router (1xSFP WAN/LAN,1xGbEWAN, 4xGbELAN/WAN, 1xUSB3.0)
Popis
Parametry

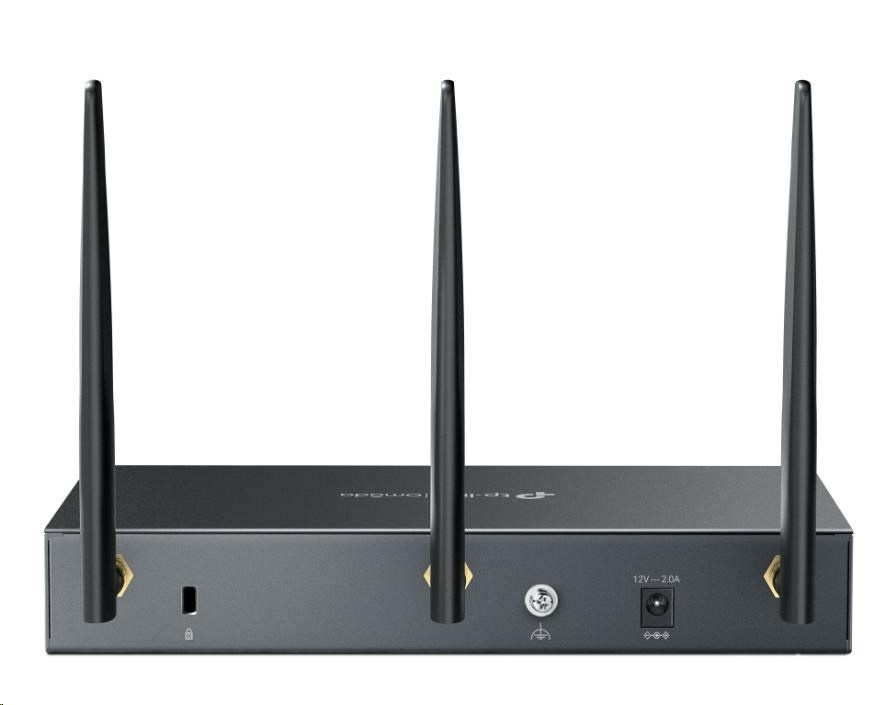

TP-Link ER706W
Omada AX3000 Gigabitový VPN router
- AX3000 Dual-Band WiFi: Podporuje 2402 Mbps na 5 GHz a 574 Mbps na 2,4 GHz
- 6 gigabitových ethernetových portů: 1 gigabitový SFP a 5 gigabitových RJ45 portů poskytují vysokorychlostní kabelové připojení.
- Technologie Omada Mesh: Bezproblémové připojení k EAP, které podporují technologii mesh, ideální pro rozsáhlé scénáře.
- Centralizovaná správa: Přístup ke cloudu a aplikace Omada pro maximální pohodlí a snadnou správu.
- Zvýšené pokrytí: Trojité externí antény rozšiřují a koncentrují signály Wi-Fi.
- High-Security VPN: Podporuje více protokolů VPN včetně IPSec / SSL / Wireguard / PPTP / L2TP VPN, což uživatelům pomáhá flexibilněji vytvářet vzdálená připojení.
- Bohaté bezpečnostní funkce: Pokročilé zásady brány firewall, obrana DoS, filtrování IP/MAC/URL a další bezpečnostní funkce chrání vaši síť a data.
Learn more about Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er706w/
Technické specifikace
| SECURITY | |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering† • URL Filtering • Web Security† |
| ARP Inspection | • Sending GARP Packets • ARP Scanning† • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB3.0 (supports USB LTE dongle and USB Storage) |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | • 2.4 GHz: 2x 3 dBi dual-band detachable antennas • 5 GHz: 3x 4.5 dBi dual-band detachable antennas |
| Mounting | Desktop/Wall-mounting |
| Max Power Consumption | • EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) • US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
| PERFORMANCE | |
| GRE | • Unencrypted: 624.2Mbps • Encrypted: 301.5Mbps |
| WireGuard VPN | 393.5Mbps |
| Concurrent Session | 150 |
| New Sessions /Second | 5,1 |
| NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
| NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 646.9Mbps • ESP-SHA256-AES256: 642.8Mbps • ESP-SHA384-AES256: 648.9Mbps • ESP-SHA512-AES256: 658.4 Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | • Unencrypted: 1034.0 Mbps • Encrypted: 570.0 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1165.0 Mbps • Encrypted: 209.0 Mbps |
| SSL VPN Throughput | 126.7Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
| WIRELESS FEATURES | |
| Advanced Functions | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Guest Network | Support |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing • RIP† • OSPF† |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-Based Session Limit |
| VPN | |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)? • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)? • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)? • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password§ • Hotspot (Local User / Voucher§ / SMS§ / Radius§) • External Radius Sever • External Portal Sever§ • LDAP |
| MANAGEMENT | |
| Omada App | Yes. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)† • NTP Synchronize† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER706W • Power Adapter • Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
.
Počet portů LAN:
4
USB port:
Ano
Gigabit ethernet:
Ano
Další vlastnosti:
VLAN
Další vlastnosti:
Podpora IPv6
Další vlastnosti:
FTP server
Další vlastnosti:
Management
Funkce:
Router
Funkce:
VPN
Podporované standardy:
802.11a
Podporované standardy:
802.11ac
Podporované standardy:
802.11b
Podporované standardy:
802.11g
Podporované standardy:
802.11n
Podporované standardy:
802.11ax
Přenosová rychlost Wi-Fi (Mb/s):
2917 - 4000
Typ antény:
Odnímatelná
Počet SFP portů:
1
Počet portů LAN:
4
Počet SFP portů:
1
