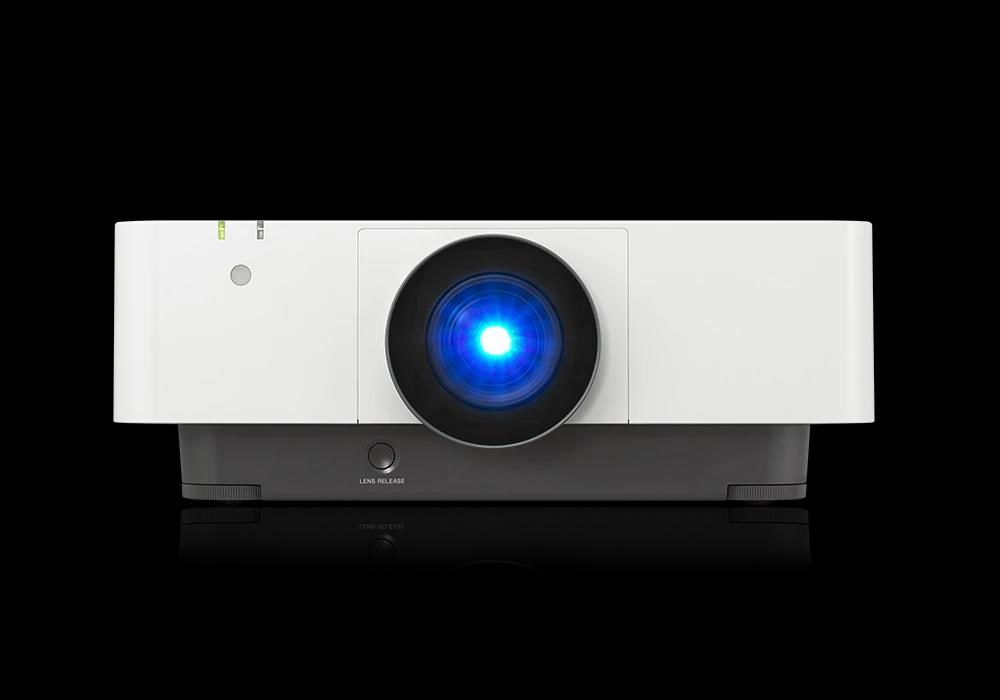

    SONY projector VPL-FHZ85 8000lm, WUXGA, Laser, Op.Lenses, White

    Přidat do oblíbenýchSONY projector VPL-FHZ85 8000lm, WUXGA, Laser, Op.Lenses, White
    Skutečné rozlišení projektoru:WUXGA (1920x1200); Technologie:LCD; Zdroj světla:Laser; Svítivost (v ANSI lumenech):8000; Rozhraní:LAN (RJ-45).

    Kód produktu329919
    Part numberVPL-FHZ85
    EAN produktu4548736132849

    Záruka:12 Měsíc(ů)
    Výrobce:Sony
    Skladová dostupnost:Na dotaz
    Vaše cena bez DPH
    138320.66 Kč
    Vaše cena včetně DPH
    167368 Kč






    Přidat produkt k porovnání >
    Popis
    Parametry
    Display system
    Display system
    3 LCD system
    Display device
    Size of effective display area
    New LCD panel 0.76" (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
    Number of pixels
    6,912,000 (1920 x 1200 x 3) pixels
    Projection lens *1
    Focus
    Powered
    Zoom - Powered/Manual
    Powered
    Zoom - Ratio
    Approx. x 1.6
    Throw ratio
    1.39:1 to 2.23:1
    Lens shift - Powered/Manual
    Powered
    Lens shift - Range Vertical
    -5%, +70%
    Lens shift - Range Horizontal
    +/- 32%
    Light source
    Type
    Laser diode
    Screen size
    Screen size
    40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)
    Light output *2
    Mode: Standard
    7300lm *3 / 8000lm (Center)*4
    Mode: Middle
    5840lm
    Mode: Low
    -
    Colour light output *2
    Mode: Standard
    7300lm
    Mode: Middle
    5840lm
    Mode: Low
    -
    Time until light output declines to 50 %*5
    Mode: Standard
    20000 hours
    Mode: Middle
    30000 hours
    Contrast ratio (full white / full black) *2
    Contrast ratio (full white / full black)
    ?:1
    Displayable scanning frequency
    Horizontal
    15 kHz to 93 kHz
    Vertical
    23 Hz to 63 Hz
    Accepted signal resolution
    Computer signal input
    Maximum signal resolution: 1920 x 1200 *6
    Video signal input
    NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p,3840/60p, 3840/30p, 3840/25p, 3840/24p,4096/60p, 4096/30p, 4096/25p, 4096/24p
    Keystone correction (Max.)
    Horizontal
    +/- 30 degrees
    Vertical
    +/- 30 degrees
    INPUT OUTPUT (Computer / Video / Audio / Control)
    INPUT A
    RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
    Audio input connector: Stereo mini jack
    INPUT B
    DVI input connector: DVI-D 24-pin (single link), HDCP support
    Audio input connector: Shared with INPUT A
    INPUT C
    HDMI input connector: HDMI 19-pin, HDCP support
    Audio input connector: HDMI audio support
    INPUT D
    HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
    VIDEO IN
    Video input connector: BNC
    Audio input connector: Shared with input A
    OUTPUT A
    Monitor output for Input A Connector: Mini D-sub 15-pin (female)
    Audio output connector: Stereo mini jack
    OUTPUT B
    Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported
    Audio output, Monitor out connector: Stereo mini jack
    REMOTE
    D-sub 9-pin (male) / RS232C
    LAN
    RJ45, 10BASE-T/100BASE-TX
    IR (Control S)
    Stereo mini jack, Plug in power DC5V
    USB
    TYPE-A (for F/W update) , TYPE-A (for Power supply)
    Acoustic Noise *2
    Acoustic Noise (Mode: Standard / Middle)
    38 dB / 36 dB
    Operating temperature / Operating humidity
    Operating temperature / Operating humidity
    0°C to 45°C (32°F to 109°F) / 20% to 80% (no condensation)
    Storage temperature / Storage humidity
    Storage temperature / Storage humidity
    -10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)
    Power requirements
    Power requirements
    AC 100 V to 240 V, 5.1 A to 2.2 A, 50 Hz / 60 Hz
    Power consumption
    AC 100 V to 120 V
    Mode: Standard: 506 W
    AC 220 V to 240 V
    Mode: Standard: 474 W
    Power consumption (Standby Mode)
    AC 100 V to 120 V
    0.5W (when “Standby mode” is set to “Low”)
    AC 220 V to 240 V
    0.5W (when “Standby mode” is set to “Low”)
    Power consumption (Networked Standby Mode)
    AC 100 V to 120 V
    9.8 W (LAN)
    10.6 W (HDBaseT)
    10.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
    AC 220 V to 240 V
    10.9 W (LAN)
    11.6 W (HDBaseT)
    11.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
    Standby Mode / Networked Standby Mode Activated
    Standby Mode / Networked Standby Mode Activated
    Approx. 10 Minutes
    Heat dissipation
    AC 100 V to 120 V
    1617 BTU/h
    AC 220 V to 240 V
    1727 BTU/h
    Dimensions (W x H x D)
    Dimensions (W x H x D) (without protrusions)
    460 x 169 x 494 mm
    18 1/8 x 6 3/4 x 19 1/2 inches
    Mass
    Mass
    Approx. 13 kg (29 lb)
    Optional accessories
    Projection Lens
    VPLL-3003 / 3007 / Z3009 / Z3010 / Z3024 / Z3032
    Notes
    *1
    With supplied standard lens
    *2
    The figures are approximate. They vary depending on the environment or how the projector is used.
    *3
    The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.
    *4
    The value is light output measured at centre area of screen in Standard mode, and average of all products shipped.
    *5
    Estimated time until light output declines to 50 % varies depending on environment.
    *6
    Available for VESA Reduced Blanking signal.
    .
    Svítivost (v ANSI lumenech): 8000
    Technologie: LCD
    Skutečné rozlišení projektoru: WUXGA (1920x1200)
    Rozhraní: LAN (RJ-45)
    Zdroj světla: Laser
