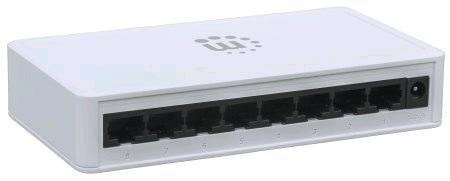

MANHATTAN Switch 8-port 10/100/1000Mbps, desktop, plast, bílý

Standards

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3x (Flow Control and Backpressure)
• IEEE 802.3az (Energy Efficient Ethernet)
  General
• Connectors: 8 10/100/1000 Mbps RJ45 ports
• Cable: Cat3, 4, 5 UTP/STP
• Duplex modes: all ports (up to 200 Mbps)
• Uplink: all ports Auto MDI/MDX (Auto Uplink)
• Switch architecture: store and forward switch technology
• Filter/forward rate:
  - 10BaseT: 14,880 pps (packets per second)
  - 100Base-TX: 148,800 pps (packets per second)
  - 1000Base-T: 1,488,000 pps (packets per second)
• MAC address table: 2,048 entries
• Buffer memory: 256 kBytes
• Jumbo frame support: 9 kB
• Backplane speed / switch fabric: 16 Gbps
• Certifications: FCC Class B, CE, RoHS
  LEDs
• Power
• Link/Activity
  Power
• External AC adapter: 5 V, 1 A
  Environmental
• Dimensions: 140 (w) x 78 (l) x 28 (h) mm (5.5 x 3.07 x 1.1 in.)
• Weight: 0.33 kg (0.73 lbs.)
• Operating temperature: 0 – 40°C (32 – 104°F)
• Humidity: 10 – 90% (non-condensing)
  Package Contents
• 8-Port Gigabit Ethernet Switch
• Power adapter
• User manual
