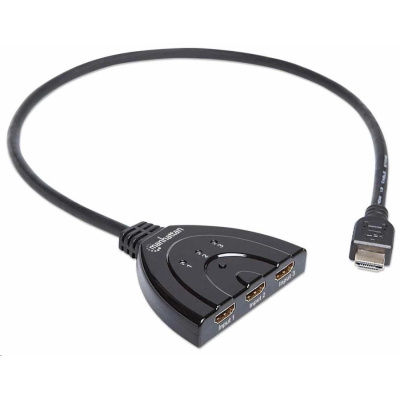

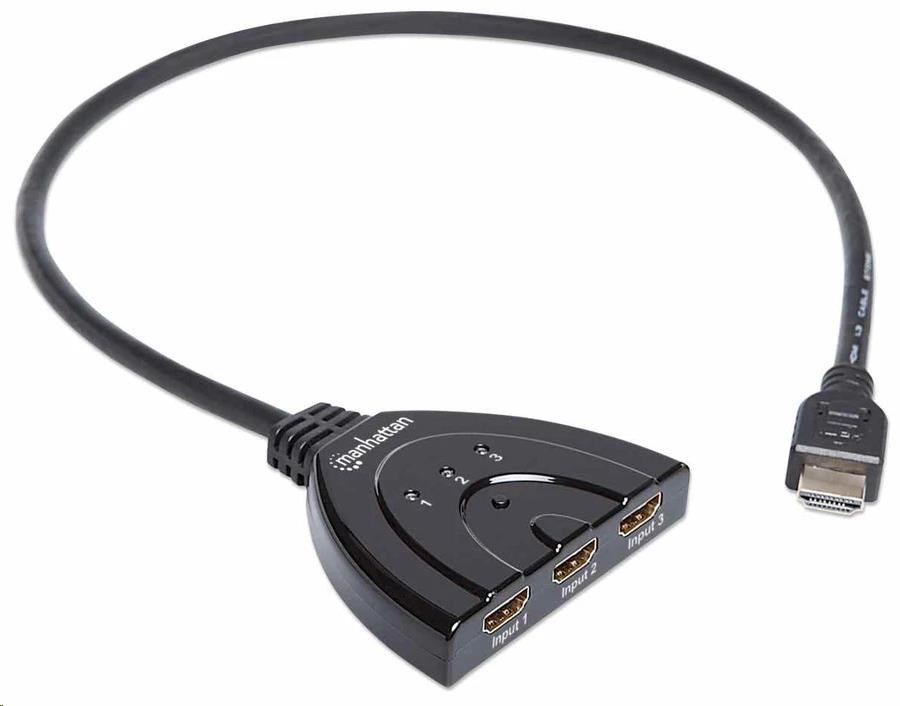

    Manhattan HDMI přepínač, 3-Port HDMI Switch, 1080p, černá

    Druh IO zařízení:HDMI hub nebo switch; Provedení:Externí.

    Kód produktu254975
    Part number207843
    EAN produktu766623207843

    Záruka:24 Měsíc(ů)
    Výrobce:Manhattan
    Skladová dostupnost:skladem u dodavatele, expedice do 24 hodin
    Vaše cena bez DPH
    439.67 Kč
    Vaše cena včetně DPH
    532 Kč






    Přidat produkt k porovnání >
    Popis
    Parametry

    1080p 3-Port HDMI Switch

    Easily connect multiple HDMI sources to a single display.
    The Manhattan 1080p 3-Port HDMI Switch allows media enthusiasts to connect three HDMI video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to a single high-definition display.
    Flexible Solution for Many HD Applications
    With the increased number of high-definition media devices, the Manhattan 1080p 3-Port HDMI Switch expands the connectivity options for your HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, it offers a switching button so you can manually select sources when more than one HD video source is on at the same time.
    Best Possible Image Quality
    Full compliance with HDMI and HDCP 1.0/1.1 ensures the Manhattan 1080p 3-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 1080p resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.

    • Connects up to three HD video sources to a single HDMI display
    • Supports automatic switching (when an HD signal is detected) and manual switching (between sources with the push of a button)
    • Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
    • HDCP compliant
    • Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
    • Supports 3D video and 8-bits (24-bits total) Deep Color
    • Supports video amplifier bandwidth up to 2.5 Gbps for 1080p display
    • Plug and play: no special setup, power or remote required
    • Integrated HDMI cable
    • Gold-plated contacts for corrosion-free connections
    • Three-year warranty

    TECHNICAL SPECIFICATIONS

    Standards and Certifications HDMI 1.3b
    HDCP 1.0 / 1.1
    CE
    FCC
    RoHS2
    Package Contents 1080p 3-Port HDMI Switch
    Quick Instruction Guide
    Connections One HDMI male, 19-pin (output)
    Three HDMI female, 19-pin (input)
    General
    Source-to-switch range up to 15 m (49 ft.)
    Signal Input/Output
    Input video signal 400 – 600 mV
    Input DDC signal 5 V p-p (TTL)
    Maximum single-link range 2.5 Gbps and 1080p resolution
    Output video HDMI 1.3b, HDCP 1.0 / 1.1
    Frequency 2.5 Gbps / 250 MHz
    Video Resolutions
    DTV/HDTV 480i/480p/576i/576p/720p/1080i/1080p
    Physical
    Dimensions 82 x 61 x 15 mm (3.2 x 2.4 x 0.6 in.)
    Cable length 58 cm (23 in.)
    Weight 91 g (3.2 oz.)
    Operating Environment
    Operation Temperature 0 – 40°C (32 – 104°F)
    Storage Temperature -20 – 60°C (-4 – 140°F)
    Humidity (noncondensing) 0 – 96%

    .
    Druh IO zařízení: HDMI hub nebo switch
    Provedení: Externí
