MANHATTAN Adapter SuperSpeed USB-C Male na HDMI Female, černá
Popis
Parametry

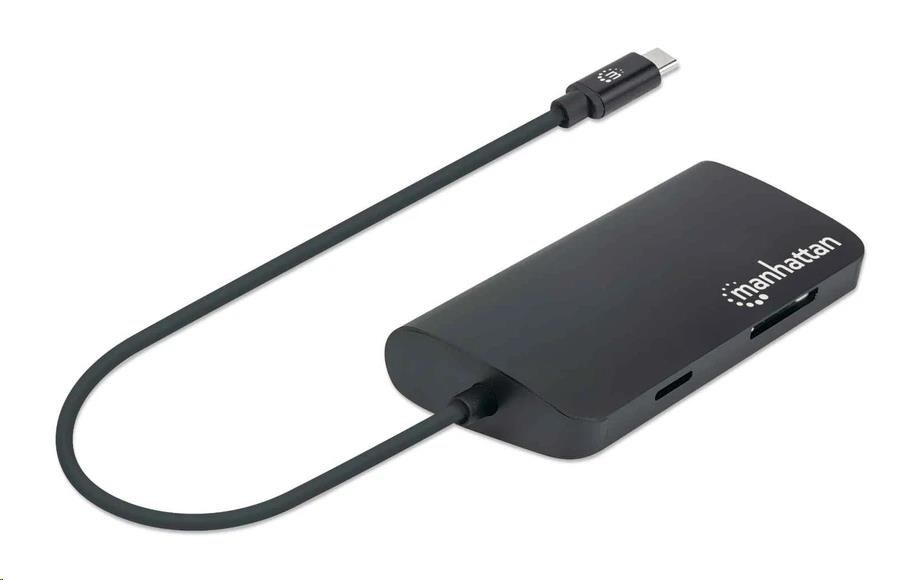

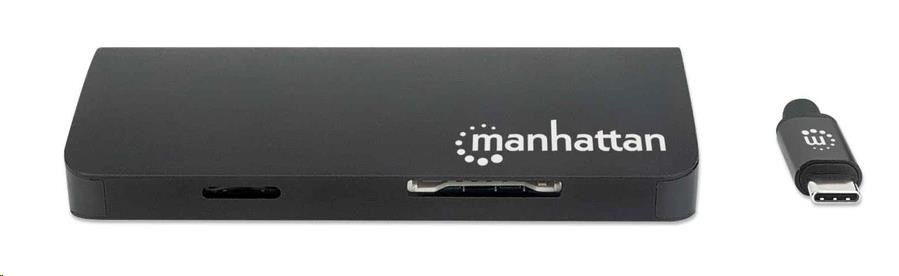

SuperSpeed USB-C Multiport Adapter
USB 3.2 Gen 1 Type-C Male to HDMI (4K@30Hz) Female, Three SuperSpeed USB-A Ports, USB-C Power Delivery (PD 3.0) Port, Gigabit RJ45 Port and SD/MicroSD Card Reader; Aluminum, Black
- Durable, portable and powerful USB-C hub that connects you to the network, your display, multiple USB devices and external memory
- Supports up to 4K@30Hz resolution in Mirror or Extended mode
- Up to 5 Gbps data transfer speeds on USB ports following USB 3.2 Gen 1 specification
TECHNICAL SPECIFICATIONS
| Standards and Certifications | USB 3.2 Gen 1 HDMI 1.4 HDCP 1.4 CE FCC RoHS2 WEEE |
| Video Resolutions | - 640 x 480 - 800 x 600 - 1024 x 768 - 1920 x 1080 (1080p@60Hz) - 1920 x 1200 - 3840 x 2160p at 30 Hz (4K@30Hz) |
| USB-A ports | 5 Gbps |
| Ethernet port | 10/100/1000 Mbps |
| Supported flash cards | SD / MicroSD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile; up to 128 GB - Transfer speed: up to 800 Mbps |
| USB-C PD Charging Port | 100 W (20 V at 5 A) |
| Withstanding voltage | 300 VDC |
| Insulation resistance | 10 MOhm |
| Conductive resistance | 5 Ohm |
| Connections Input | One USB-C 24-pin, male |
| Connections Output | One HDMI 19-pin, female One 10/100/1000 Mbps RJ45, female Three USB-A 4-pin, female One SD memory slot One MicroSD memory slot One USB-C 24-pin, Power Delivery, female |
| Dimensions | 110 x 45 x 18 mm (4.33 x 1.77 x 0.71 in.) |
| Cable Length | 30 cm (11.8 in.) |
| Weight | 80 g (2.82 oz.) |
| Housing | Aluminium |
| Operation Temperature | 0 - 45°C (32 - 113°F) |
| Storage Temperature | -10 - 70°C (14 - 158°F) |
| Humidity (noncondensing) | 10 - 90% |
| System Requirements | DP Alt Mode supported devices Windows XP/Vista/7/8.1/10 Linux Mac OS 10.7.1 or above |
| Package Contents | SuperSpeed USB-C Multiport Adapter Quick Instruction Guide |
.
Specifikace kabelu / redukce:
Adaptér, Redukce
Input:
USB-C
