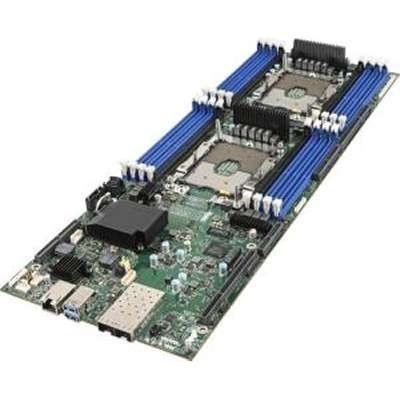

Intel Server Board S2600BPB (BUCHANAN PASS)
Popis
Parametry
| Code Name | Buchanan Pass |
| Essentials | |
| Expected Discontinuance | Q3'20 |
| Limited 3-year Warranty | Yes |
| Extended Warranty Available for Purchase (Select Countries) | Yes |
| # of QPI Links | 2 |
| Compatible Product Series | Intel® Xeon® Scalable Processors |
| Board Form Factor | Custom 6.8" x 19.1" |
| Chassis Form Factor | Rack |
| Socket | Socket P |
| Integrated Systems Available | No |
| Integrated BMC with IPMI | Yes |
| Rack-Friendly Board | Yes |
| TDP | 165 W |
| Included Items | OEM 10 pack includes (10) Intel® Server Board S2600BPB |
| Board Chipset | Intel® C621 Chipset |
| Target Market | High Performance Computing |
| Supplemental Information | |
| Embedded Options Available | No |
| Description | A high-density server board supporting two Intel® Xeon® Processor Scalable Family supporting dual 10GbE and 16 DIMMs with two DIMMs per Channel designed for large memory bandwidth; an ideal option for high-performance computing and datacenter deployment. |
| Memory Specifications | |
| Memory Types | DDR4 ECC RDIMM/LRDIMM 2133/2400/2666 |
| Max # of Memory Channels | 12 |
| Max # of DIMMs | 16 |
| ECC Memory Supported ‡ | Yes |
| Processor Graphics | |
| Integrated Graphics ‡ | No |
| Graphics Output | VGA |
| Discrete Graphics | Supported |
| Expansion Options | |
| PCI Express Revision | 3.0 |
| Max # of PCI Express Lanes | 96 |
| PCIe x16 Gen 3 | 4 |
| Riser Slot 1: Total # of Lanes | 16 |
| Riser Slot 2: Total # of Lanes | 24 |
| Riser Slot 3: Total # of Lanes | 24 |
| Riser Slot 4: Total # of Lanes | 16 |
| I/O Specifications | |
| # of USB Ports | 2 |
| USB Revision | 3.0 |
| Total # of SATA Ports | 8 |
| RAID Configuration | RAID Levels 0/1/10/5/50 (LSI) |
| # of Serial Ports | 1 |
| # of LAN Ports | 2 |
| Integrated LAN | 2x 10GbE; 1x 1GbE (Dedicated Management) |
| Firewire | No |
| Embedded USB (eUSB) Solid State Drive Option | No |
| Integrated SAS Ports | 0 |
| Integrated InfiniBand* | No |
| Package Specifications | |
| Max CPU Configuration | 2 |
| Low Halogen Options Available | See MDDS |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® Remote Management Module Support | Yes |
| Intel® Node Manager | Yes |
| Intel® Rapid Storage Technology | No |
| Intel® Rapid Storage Technology enterprise | Yes |
| Intel® Fast Memory Access | Yes |
| Intel® Flex Memory Access | Yes |
| Intel® I/O Acceleration Technology | Yes |
| Intel® Advanced Management Technology | Yes |
| Intel® Server Customization Technology | Yes |
| Intel® Build Assurance Technology | Yes |
| Intel® Efficient Power Technology | Yes |
| Intel® Quiet Thermal Technology | Yes |
| Intel® Transparent Supply Chain | |
| Includes Statement of Conformance and Platform Certificate | Yes |
| TPM Version | 2.0 |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
.
Druh produktu:
Základní deska
