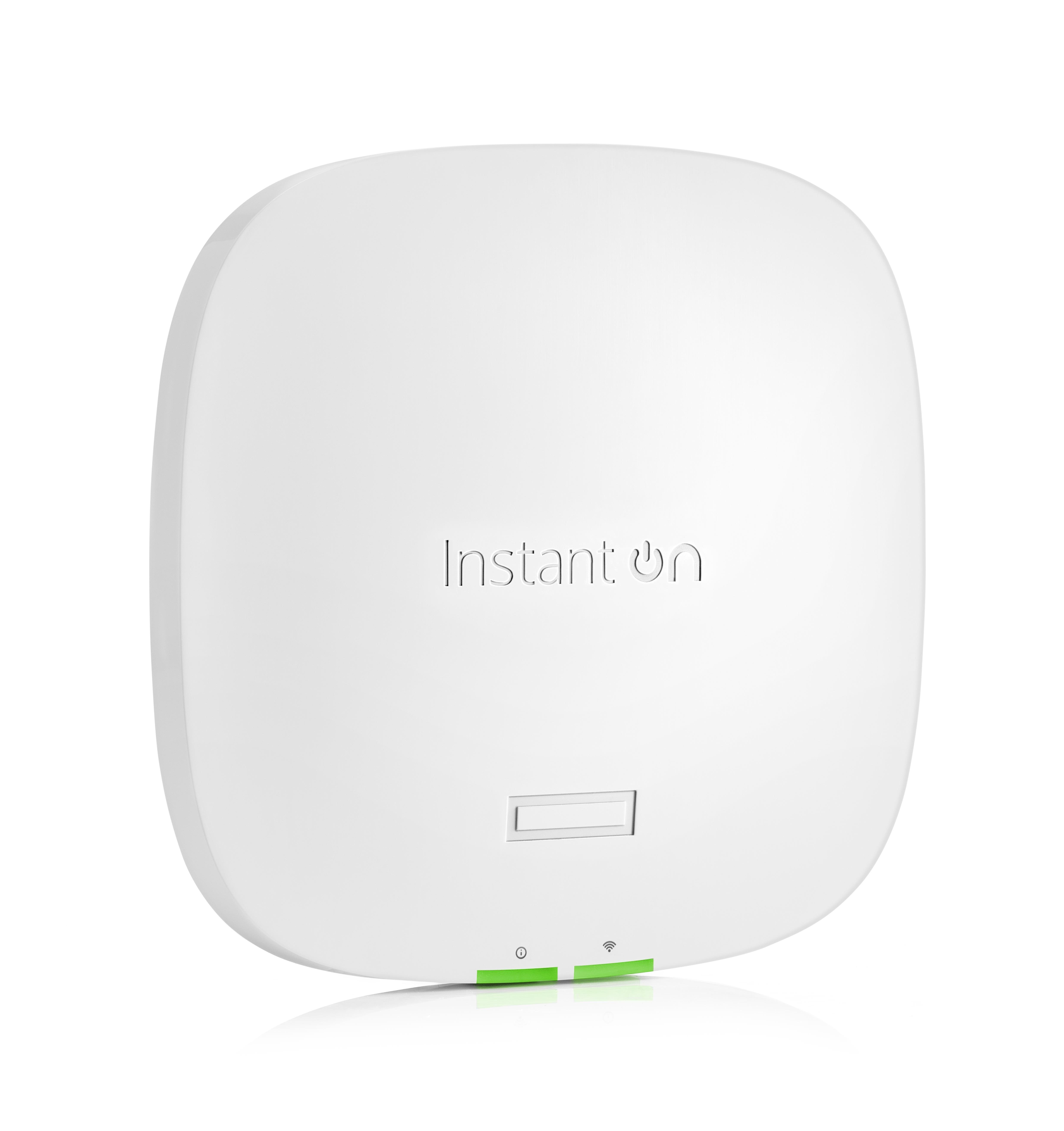

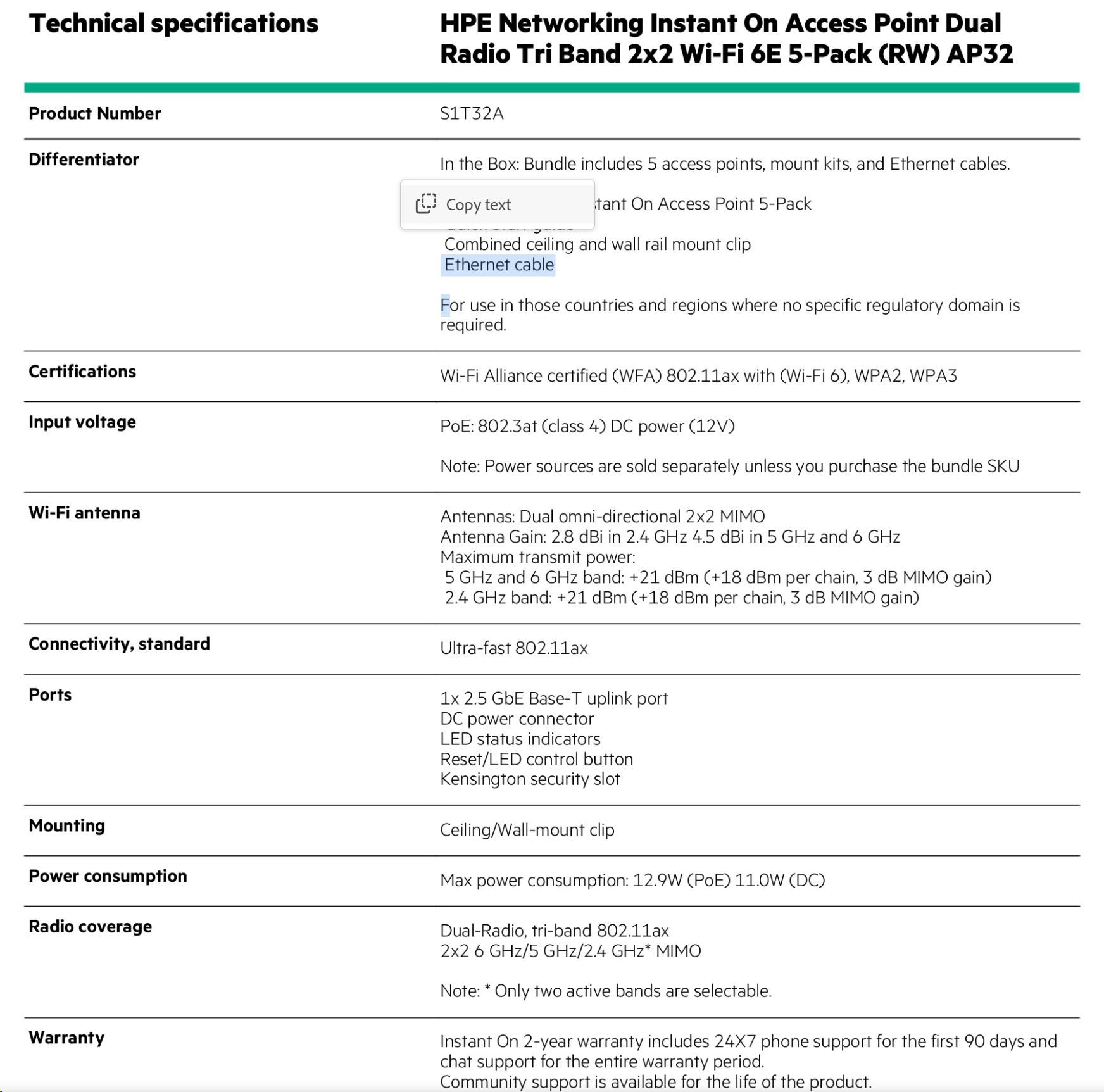

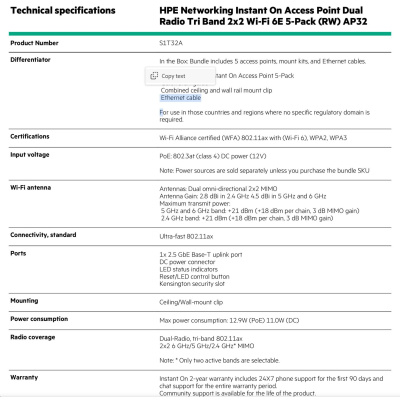

HPE Networking Instant On Access Point Dual Radio Tri Band 2x2 Wi-Fi 6E 5-Pack (RW) AP32
HPE Networking Instant On Access Point Dual Radio Tri Band 2x2 Wi-Fi 6E 5-Pack + 5 Mount Brackets (RW) AP32 ( S1T32A )
Box content
5 access points, mount kits, and Ethernet cables.
HPE Networking Instant On Access Point 5-Pack Quick Start guide Combined ceiling and wall rail mount clip Ethernet cable
For use in those countries and regions where no specific regulatory domain is required.
Certifications
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Input voltage PoE:
802.3at (class 4) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU
Wi-Fi antenna Antennas:
Dual omni-directional 2x2 MIMO Antenna Gain: 2.8 dBi in 2.4 GHz 4.5 dBi in 5 GHz and 6 GHz Maximum transmit power: 5 GHz and 6 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) 2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
Connectivity, standard
Ultra-fast 802.11ax
Ports

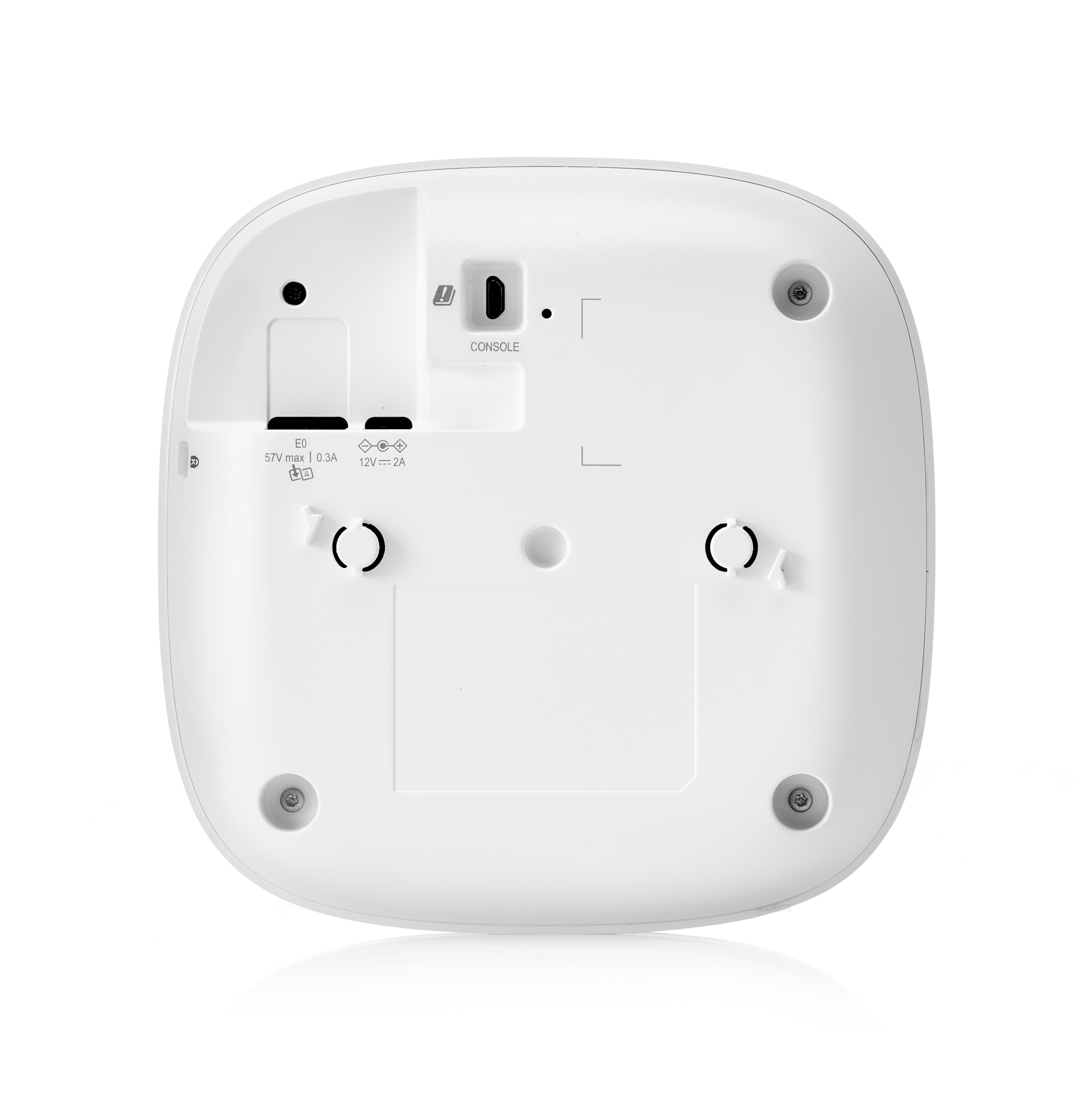

1x 2.5 GbE Base-T uplink port DC power connector LED status indicators Reset/LED control button Kensington security slot
Mounting
Ceiling/Wall-mount clip
Power consumption
Max power consumption: 12.9W (PoE) 11.0W (DC)
Radio coverage
Dual-Radio, tri-band 802.11ax 2x2 6 GHz/5 GHz/2.4 GHz* MIMO Note: * Only two active bands are selectable.
Warranty
Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product.Data sheet Page 4 For additional technical information, available models and options, please reference the QuickSpecs Make the right purchase decision. Contact our presales specialists. HPE Aruba Networking Services HPE Aruba Networking services simplify and accelerate the life of the product.
.
