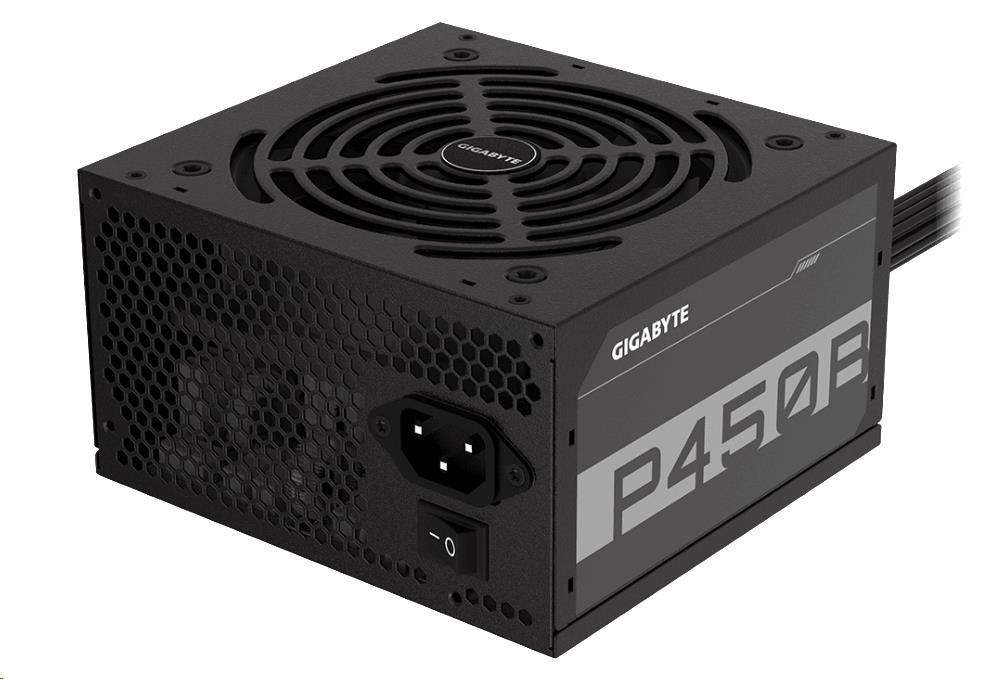

GIGABYTE zdroj P450B, 450W, 80plus bronze, 12 cm fan
Popis
Parametry
P450B
- 80 PLUS Bronze certified

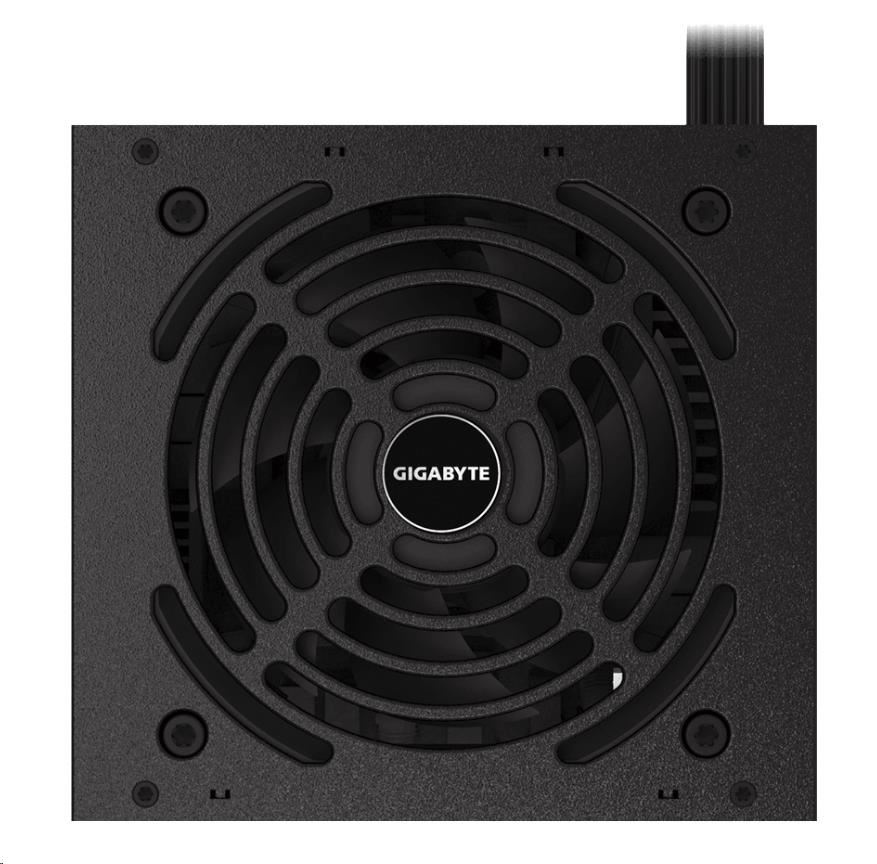

- 120mm Silent Hydraulic Bearing (HYB) Fan
- Reliable flat cable
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 3 years warranty (Adjusted according to different regions)
TECHNICAL SPECIFICATIONS
| Model | P450B |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 8A-4A |
| Input Frequency | 50-60 Hz |
| Output Capacity | 450W |
| Dimension | D150 x W140 x H86 mm |
| Fan Type | 1?20 mm Hydraulic Bearing (HYB) Fan |
| Efficiency | Up to 85% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 1?00-500ms |
| Connectors | ATX/MB 20+4 Pin x 1 : 550mm*1 CPU/EPS 4+4 Pin x 1 : 600mm*1 PCI-e 6+2 Pin x 2 : 550mm+150mm*1 SATA x 6 : 500mm+120mm+120mm*2 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1 |
.
Formát zdroje:
ATX
Konektory:
8pin CPU 1x
Konektory:
8pin CPU 2x
Konektory:
PCIe 6-pin
Konektory:
PCIe 8-pin
Konektory:
PCIe 16-pin Gen5
Konektory:
SATA 15-pin
Konektory:
Molex
Konektory:
FDD
Konektory pro základní desku:
ATX 24-pin
Konektory pro základní desku:
ATX 20-pin
Konektory pro základní desku:
EPS 8-pin
Efektivita zdroje:
80 Plus Bronze
Modulární kabeláž:
Ne
Podsvícení:
Bez podsvícení
Výkon zdroje (W):
450
