    GIGABYTE MB Sc LGA1700 H610M S2H V2, Intel H610, 2xDDR5, 2xDP, 1xHDMI, 1xVGA, mATX

    Formát základní desky:micro ATX; Chipset:Intel H610; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x8:0; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:2; HDMI:1; VGA:1; DVI:0.

    Kód produktu524947
    Part numberH610M S2H V2
    EAN produktu4719331859817

    Záruka:36 Měsíc(ů)
    Výrobce:Gigabyte
    Skladová dostupnost:Na dotaz
    Vaše cena bez DPH
    1792.56 Kč
    Vaše cena včetně DPH
    2169 Kč






    Přidat produkt k porovnání >
    Popis
    Parametry

    GIGABYTE H610M S2H V2

    Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6

    • Supports Intel® Core™ 14th/ 13th /12th processors
    • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
    • 4+1+1 Hybrid Digital VRM Design
    • GbE LAN with Bandwidth Management
    • NVMe PCIe 3.0 x4 M.2
    • 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
    • High Quality Audio Capacitors and Audio Noise Guard
    • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • GIGABYTE APP Center, Simple and Easy Use
    • Anti-Sulfur Resistors Design


    CPU

    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.



    Chipset

    Intel® H610 Express Chipset



    Memory

    14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
    - Support for DDR5 5600/5200/4800/4400 MT/s memory modules
    13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
    - Support for DDR5 4800/4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)



    Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
    - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj
    * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same timej



    Audio

    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.



    LAN

    Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)



    Expansion Slots

    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



    Storage Interface

    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
    support)
    - 4 x SATA 6Gb/s connectors



    USB

    Chipset:
    - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    - 4 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers



    Internal I/O Connectors

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x RGB LED strip header
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x Clear CMOS jumper
    1 x chassis intrusion header

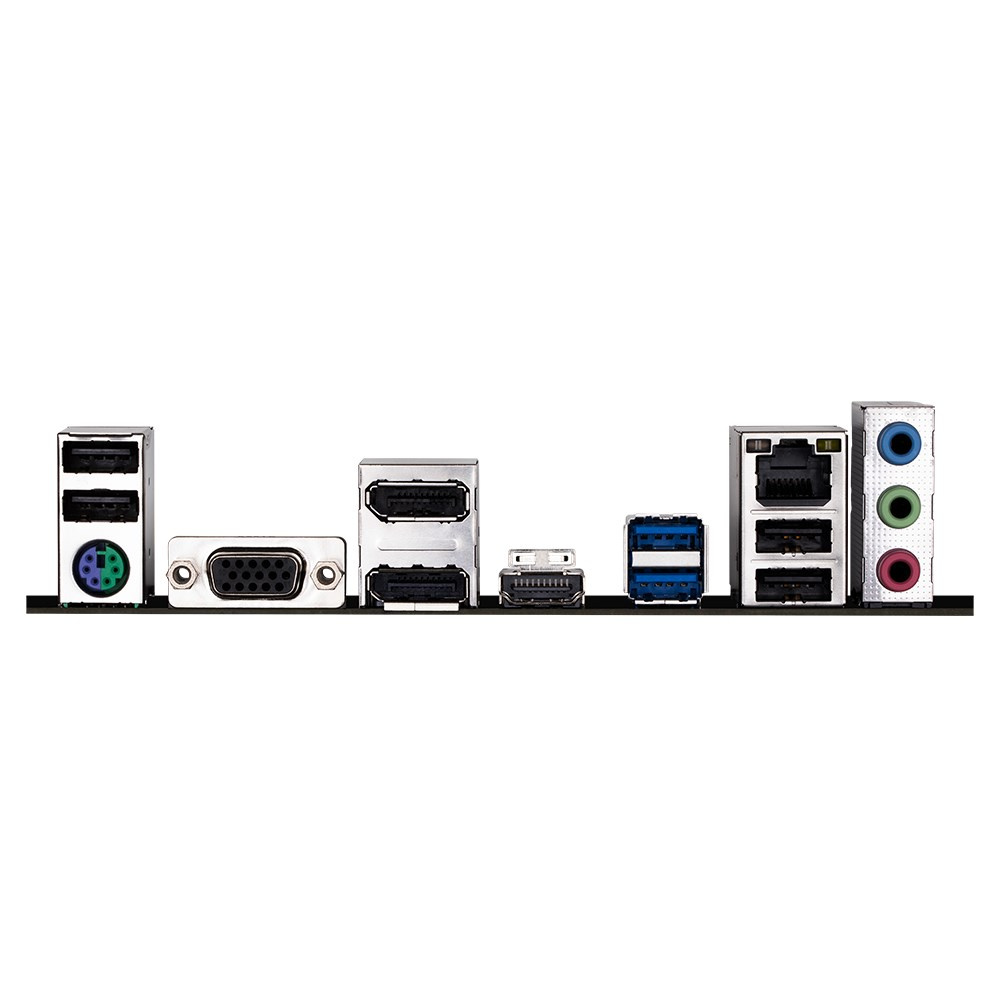

    Back panel Connectors

    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    2 x DisplayPort
    1 x HDMI port
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks



    I/O Controller

    iTE® I/O Controller Chip



    BIOS

    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



    H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.



    Unique Features

    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    - @BIOS
    - EasyTune
    - Smart Backup
    - System Information Viewer
    Support for Q-Flash



    Bundled Software

    Norton® Internet Security (OEM version)
    LAN bandwidth management software



    Operating System

    Support for Windows 11 64-bit
    Support for Windows 10 64-bit



    Form Factor

    Micro ATX Form Factor; 22.3cm x 19.6cm


    .
    Technologie paměti RAM: DDR5
    Socket (patice): Socket 1700
    Chipset: Intel H610
    PCI Express x16: 1
    Podpora RAID: Bez RAID podpory
    COM port: Ne
    LPT port: Ne
    Formát základní desky: micro ATX
    3.5mm Jack: Ano
    Bezdrátové připojení: bez
    Pro procesory: Intel
    Počet paměťových slotů: 2
    DisplayPort: 2
    TPM: Ano
    USB 2: 8
    USB 3: 4
    PCI: 0
    M.2 slot: 1
    SATA 3: 4
    VGA: 1
    DVI: 0
    HDMI: 1
    Led Header: Ano
    PCI Express x1: 1
    USB C: 0
    LAN: 1Gbit/s
    DisplayPort Type-C: 0
    Počet Thunderbolt: 0
    PCI Express x8: 0
