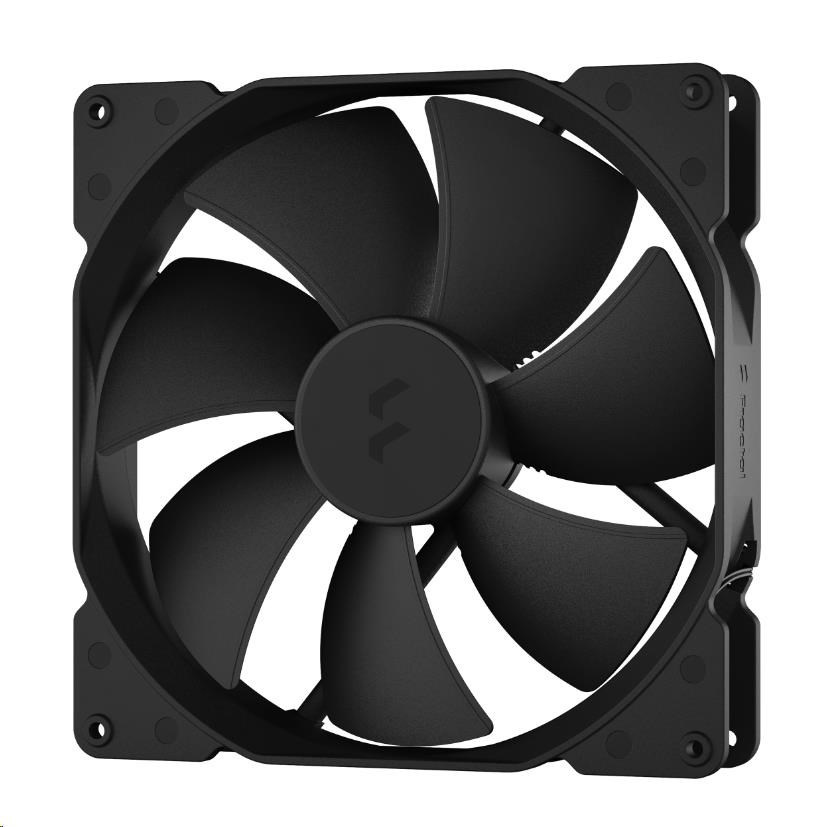

FRACTAL DESIGN ventilátor Dynamic X2 GP PWM,180mm
Popis
Parametry
Dynamic X2 GP-18 PWM
The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.
- Massive 180 x 38 mm fan that yields remarkably high airflow while remaining very quiet
- High-grade LLS bearing with 90,000-hour MTTF delivers long-lasting dependability
- PWM support offers a wide 300-1200 RPM speed range for silent operation under lighter loads and maximum airflow during more demanding activity
TECHNICAL SPECIFICATIONS
| Size | 180 x 180 x 38 mm |
| Screw hole pattern | 165 x 165 mm |
| Fan Connector | 4-pin |
| Bearing | LLS |
| Number of blades | 7 |
| Rotation speed | 300 – 1200 RPM |
| Noise level | 16 – 35.4 dB(A) |
| Max airflow | 44.9 – 153.7 CFM |
| Max airflow | 76.33 – 261.29 m3/h |
| Max pressure | 0.4 – 2.26 mmH2O |
| Input power | 4.2W at 12VDC |
| Maximum rated input current | 0.35A |
| Nominal input Voltage | 12V |
| Minimum startup voltage | 6V |
| MTBF | 90,000 hrs |
| Fan weight | 499 g |
| Cable length | 1000 mm |
| Cable type | Black ribbon cable |
.
Využití chladiče:
Do PC skříně
Typ chladiče:
Aktivní
Napájecí konektor:
4pin
Velikost ventilátoru:
180x180
