FRACTAL DESIGN skříň Meshify 2 White TG Clear Tint, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, E-ATX
Popis
Parametry

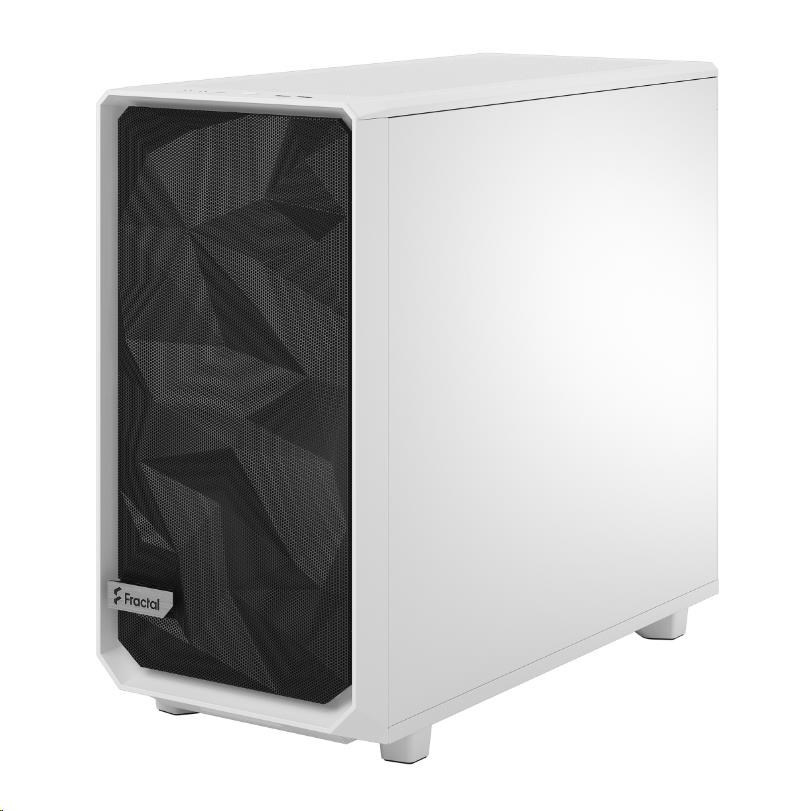

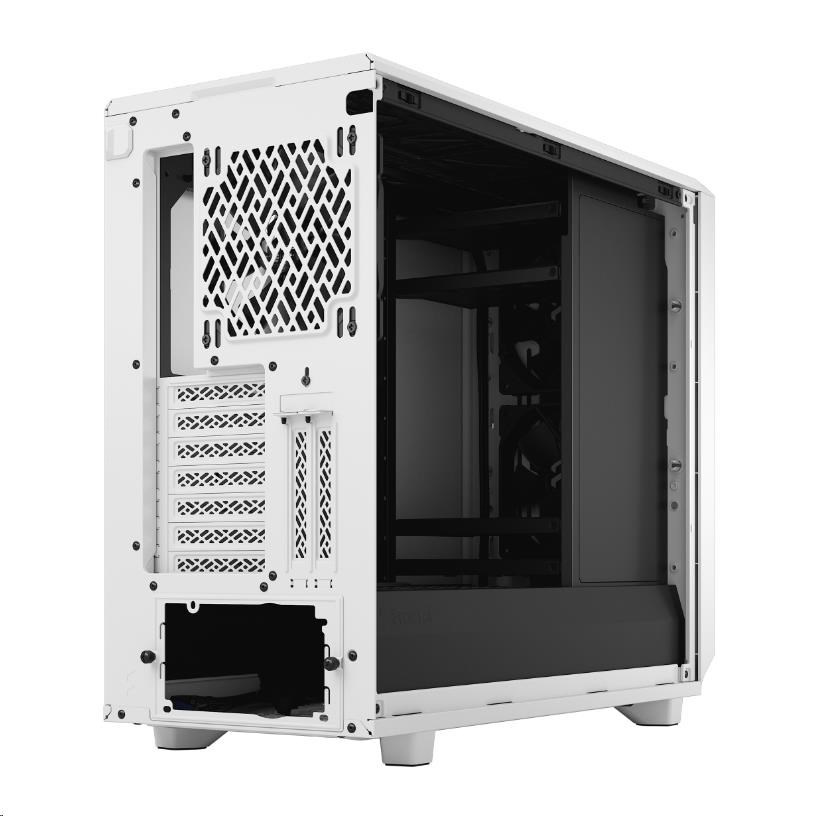

Meshify 2
The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.
- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Spacious adaptable interior for motherboards up to (and including) 285 mm E-ATX
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
TECHNICAL SPECIFICATIONS
| 3.5"/2.5" drive mounts | 6 included, 14 positions total + 1 Multibracket |
| Dedicated 2.5" drive mounts | 2 included, 4 positions total |
| Expansion slots | 7 + 2 |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 9x 120/140 mm |
| Front fan | 3x 120/140 mm (2x Dynamic X2 GP-14 included) |
| Top fan | 3x 120/140 mm |
| Rear fan | 1x 120/140 mm (1x Dynamic X2 GP-14 included) |
| Bottom fan | 2x 120/140 mm |
| Dust filters | Top, front and bottom |
| Cable routing grommets | Yes |
| Fixed velco straps | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Steel |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 360/420 mm |
| Rear radiator | 120 mm |
| Bottom radiator | Up to 240/280 mm |
| PSU max length | 250 mm (with HDD cage installed) |
| GPU max length | Open layout: 476 mm (451 mm w/ front fan) - Storage layout: 298 mm |
| Cable routing space | 30 mm |
| CPU cooler max height | 185 mm |
| Dimensions | |
| Case dimensions (L x W x H) | 542 x 240 x 474 mm |
| Case dimensions w/o feet/protrusions/screws | 541 x 240 x 454 mm |
| Net weight | Solid: 10.1 kg TG: 10.5 kg |
| Package dimensions (L x W x H) | 634 x 542 x 324 mm |
| Gross weight | Solid: 12.8 kg TG: 13.2 kg |
| Volume | 58.95 liters |
.
Provedení skříně:
Midi Tower
Počet pozic 3.5" (HDD):
6
Počet pozic 2.5" (SSD):
2
Vybavení PC skříně:
Bez integrovaného zdroje
Vybavení PC skříně:
Přední USB panel
Vybavení PC skříně:
Přední Audio panel
Bočnice:
Prosklená
