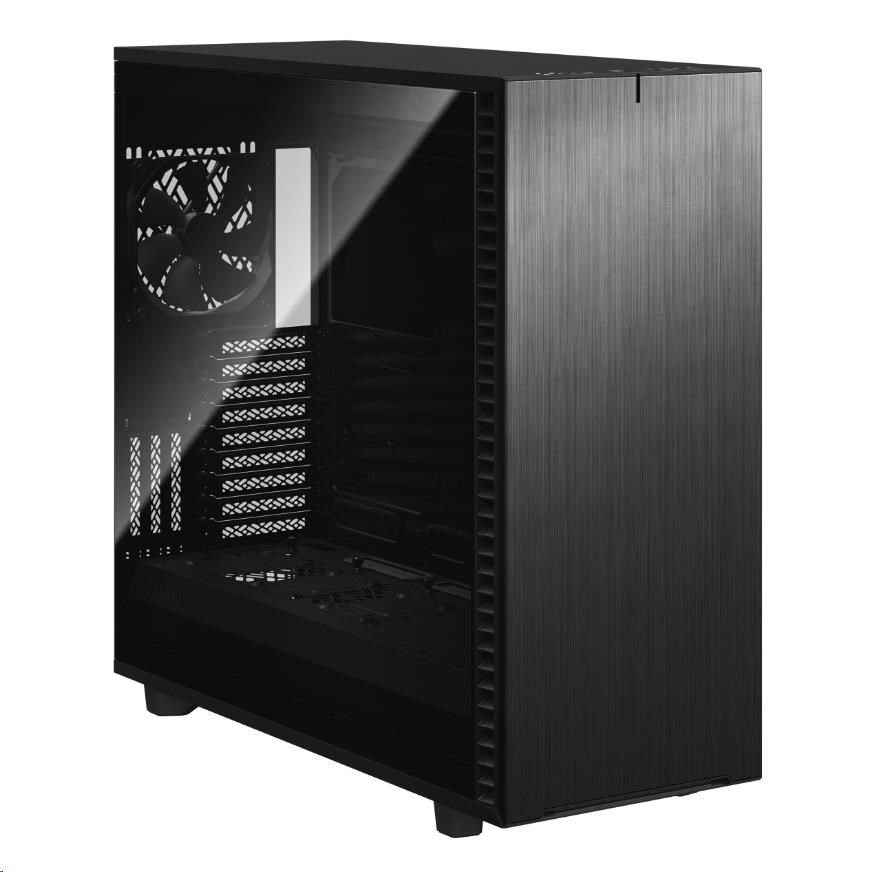

Define 7 XL
The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.
• New chassis design opens up to fully expose the case interior
• Anodized aluminum front panel with reversible dual-handed hinges
• Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout
TECHNICAL SPECIFICATIONS
| Specification | - 3.5"/2.5" Universal drive brackets: 6 + 2 included, 18 positions total
- Dedicated 2.5" drive brackets: 2 included, 5 positions total
- 5.25” drive mounts: 2
- Expansion slots: 9 + 3
- Front ports: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
- Total fan mounts: 11 x 120 mm or 9 x 140 mm
- Front fan: 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
- Top fan: 4 x 120 mm or 3 x 140 mm
- Rear fan: 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
- Bottom fan: 2 x 120/140 mm
- Dust filters: Top, 2 x Front, Bottom + PSU
- Fixed velcro straps: Yes
- Cable routing grommets: Yes
- Captive thumbscrews: HDD brackets, SSD brackets, PSU bracket
- Left side panel: Tempered glass
- Right side panel: Industrial sound-damped steel
|
| Compatibility | - Motherboard compatibility: E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
- Power supply type: ATX
- PSU max length: 250 mm (both HDD cages installed)
- GPU max length: Storage layout: 359 mm - Open layout: 549 mm (524 mm w/ front fan)
- CPU cooler max height: 185 mm
- Front radiator: Up to 480/420 mm
- Top radiator: Up to 480/420 mm
- Rear radiator: 120 mm
- Bottom radiator: Up to 240/280 mm
- Cable routing space: 30 mm
|
| Dimensions | - Case dimensions (LxWxH): 604 x 240 x 566 mm
- Case dimensions w/o feet/protrusions/screws: 590 x 240 x 548 mm
- Package dimensions (LxWxH): 646 x 357 x 708 mm
- Net weight: 16.64 kg
- Package weight: 18.84 kg
|
| More information | https://www.fractal-design.com/products/cases/define/define-7-xl-dark-tempered-glass/Black/ |
.
Provedení skříně:
Big Tower
Barva skříně:
Černá
Počet pozic 5.25":
2
Počet pozic 3.5" (HDD):
8
Počet pozic 2.5" (SSD):
5
Vybavení PC skříně:
Bez integrovaného zdroje
Vybavení PC skříně:
Přední USB panel
Vybavení PC skříně:
Přední Audio panel
Vybavení PC skříně:
Průhledná bočnice
