Eaton 9PX 8000i RT4U HotSwap Netpack, UPS 8000VA, G2

Name: Eaton 9PX 8000i RT4U HotSwap Netpack, UPS 8000VA, G2
Brand: Eaton
SKU: 149604
Price: 179785 CZK
Availability: OutOfStock

Popis

Parametry

General specifications

Product Name	Eaton 9PX Gen2 UPS
Catalog Number	9PX8KIRTNBPG2
EAN	3553340710605
Product Length/Depth	725 mm
Product Height	174 mm
Product Width	440 mm
Product Weight	83.4 kg
Warranty	3 year on electronics, 2 year on battery
Compliances	LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive
Certifications	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM
Model Code	Eaton 9PX 8000i RT4U HotSwap Netpack G2

Battery type	Sealed, lead-acid

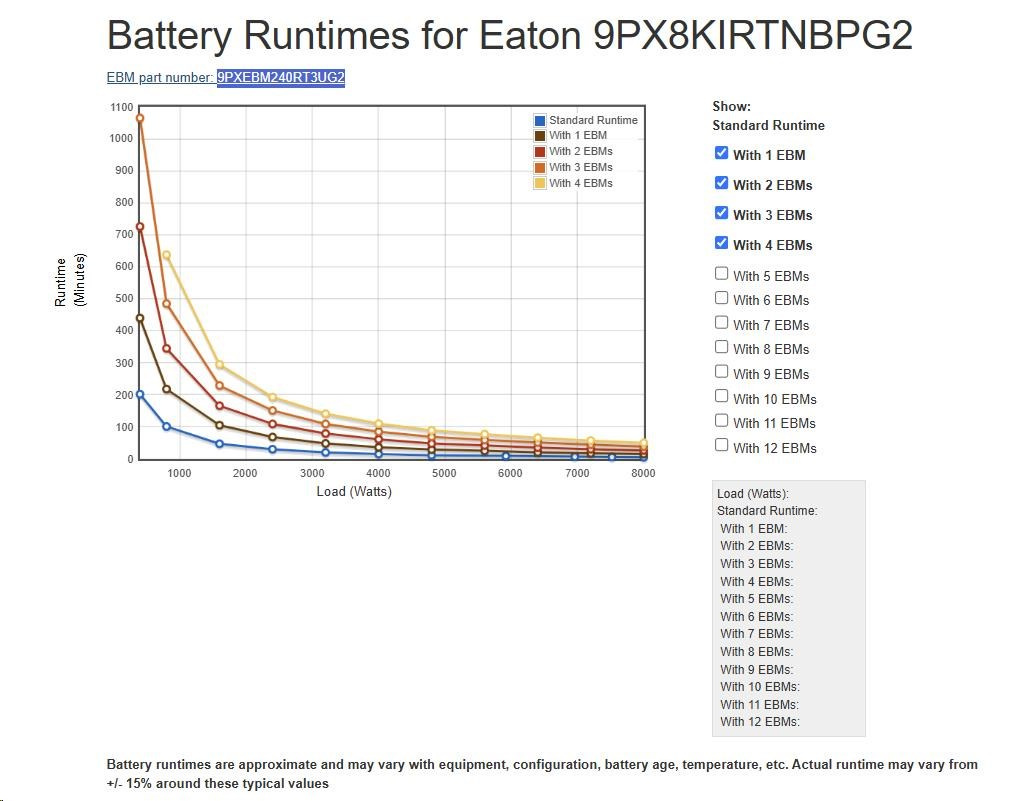

Runtime graph
Battery quantity	20
Battery management	ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units
Battery rating	12 V / 9 Ah
Extended battery capability	Yes

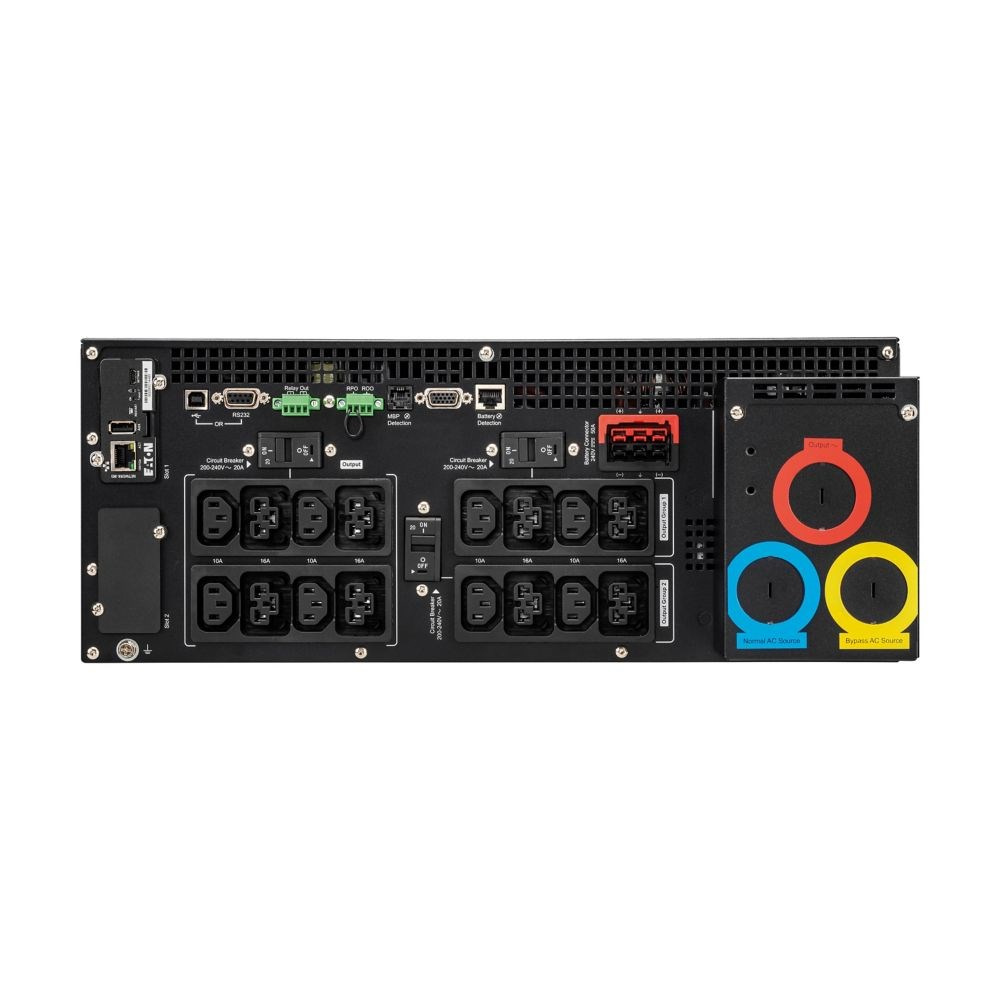

Receptacle	(8) C13, (8) C39, Hardwired
Voltage	230V
VA rating	8 kVA
Wattage	8 kW
Output power factor	1
Output voltage range	200/208/220/230/240 V +/- 1%
Output waveform	Sine wave
Output nominal voltage	230V default (200/208/220/230/240V)
Voltage distortion output (linear load) - max	1
Feed type	1
Topology	Online/Double-conversion

Includes network card	Yes
Communication	USB port (HID compliant) Serial port (RS232) Mini terminal block for remote On/Off Mini-terminal block for remote power off Mini-terminal block for dry contacts outputs (2 contacts) Network card
Ethernet interface	Yes
User interface	Multilingual graphical LCD display
Potential free switch contact	Yes
Expansion slots	2 slots, network card included
Software compatibility	Eaton Brlightlayer Software suite
Type of interface	Other

Construction type	482.6 mm (19 inch) device
Package contents	UPS (3) cable glands (2) IEC-IEC output cables (1,2m) USB cable (1,8m) Network Management Card Maintenance Bypass Supports for tower mounting Rack-mounting kit with brackets and slides for UPS Mounting kit for Maintenance Bypass Safety instructions Quickstart guide
Internal bypass	Yes
Auto shutdown function	Yes
Color	Black/silver
Efficiency at max. load	97.3
Rack mounting kit	Yes
Hot swap power	Yes

Počet výstupních zásuvek: 4

Použití: Data Center

Použití: Server

Zdánlivý výkon VA: 8000

Topologie: On-Line

Provedení: Tower/Rack

Fáze (Vstup/Výstup): 1:1

Komunikace: MNGMT karta

Možnosti: Prodloužení záložního času

Výška v Racku: 6U

Typ výstupu: IEC 19

Typ výstupu: Svorkovnice
