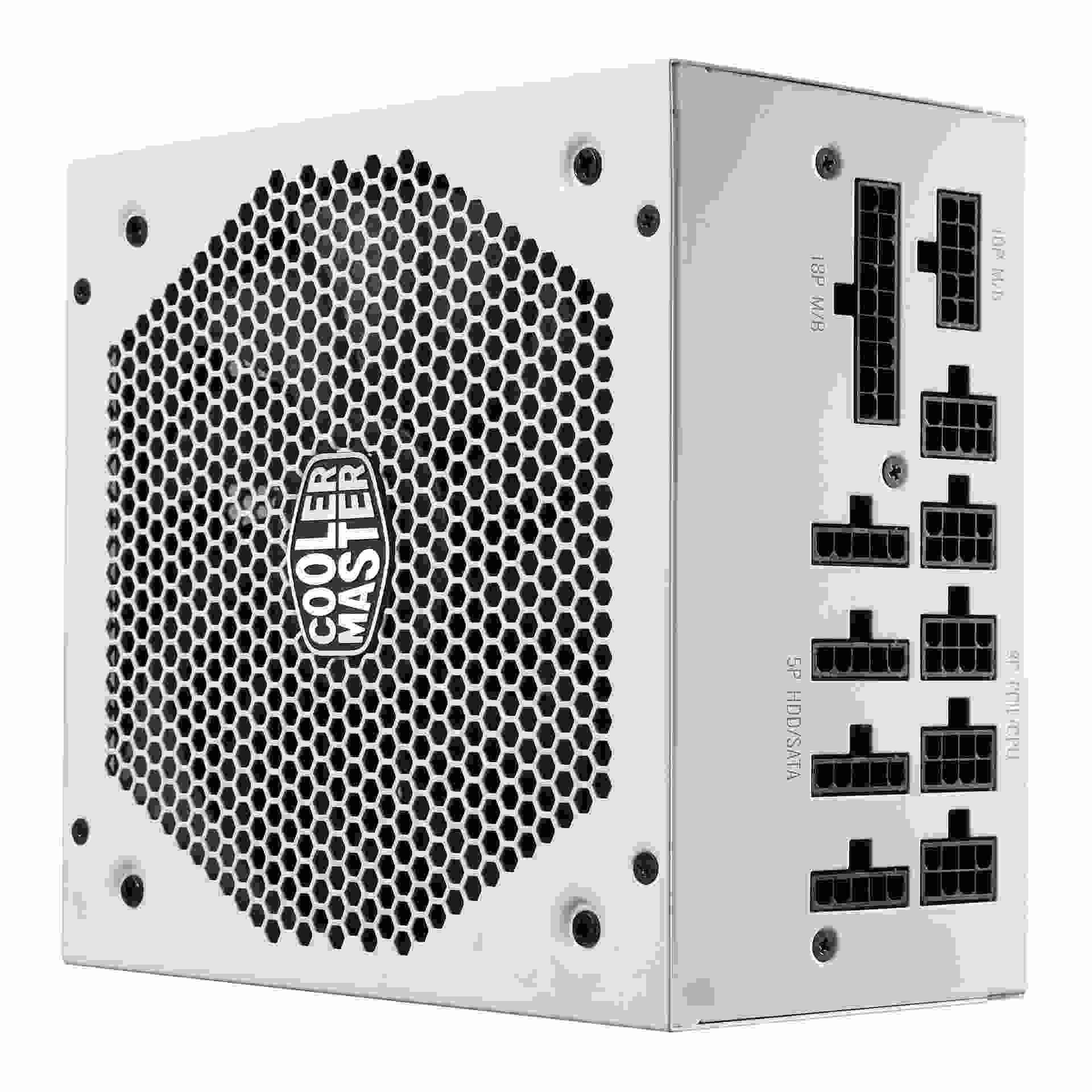

Cooler Master zdroj V750 Gold-V2 White Edition, 750W, 80+ Gold, fully modular, bilá
Popis
Parametry
V750 GOLD - V2 WHITE EDITION

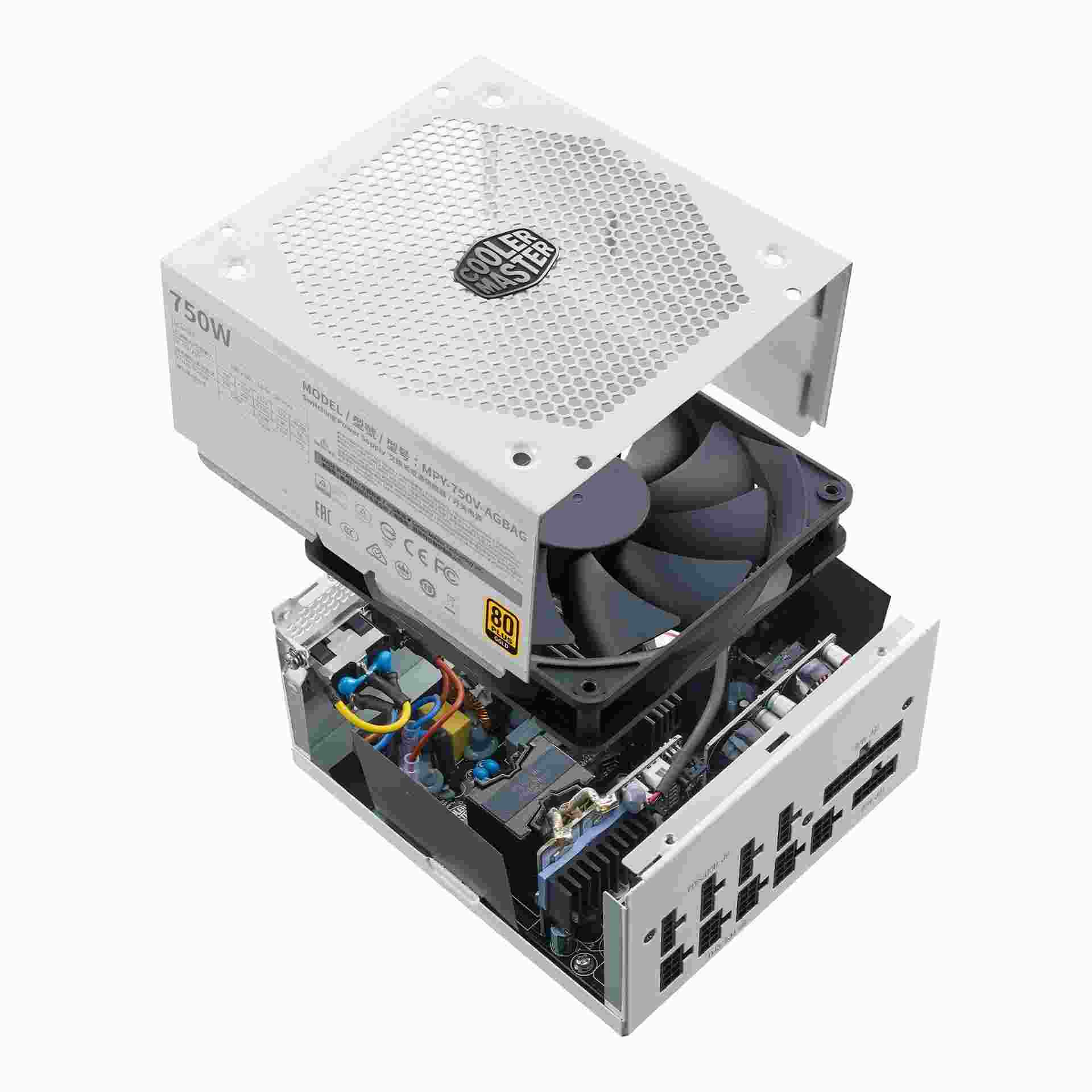

The V Gold - v2 series delivers a top-shelf power supply unit in 550, 650, 750, and 850 wattage levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, optional semi-fanless operation with a hardware based hybrid switch, a 135mm FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. This series has brought together a number of innovations and improvements from past products to form a PSU that meets all your needs. The 100% Japanese capacitors, half-bridge LLC resonant converter, and DC-DC circuitry work together, resulting in a product that even the pros can respect.
TECHNICAL SPECIFICATIONS
| Product name | V750 Gold - V2 White Edition |
| Product model | MPY-750V-AGBAG-EU |
| ATX version | ATX 12V V.2.52 |
| PFC | Active PFC |
| Input voltage | 100-240V |
| Input current | 10-5A |
| Input frequency | 50-60 Hz |
| Dimensions | 160 x 150 x 86 mm |
| Fan size | 135 mm |
| Fan bearing | FDB |
| Fan speed | 1545 RPM |
| Noise level @20% | 0 dBA |
| Noise level @50% | 23.6 dBA |
| Noise level @100% | 32.5 dBA |
| Efficiency | 90% @ Typical Load |
| 80 Plus rating | 80 PLUS Gold |
| ERP 2014 Lot 3 | Yes |
| Operating temperature | 0-50°C |
| Powergood signal | 100 - 500 ms |
| Hold up time | 17ms |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP |
| Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |

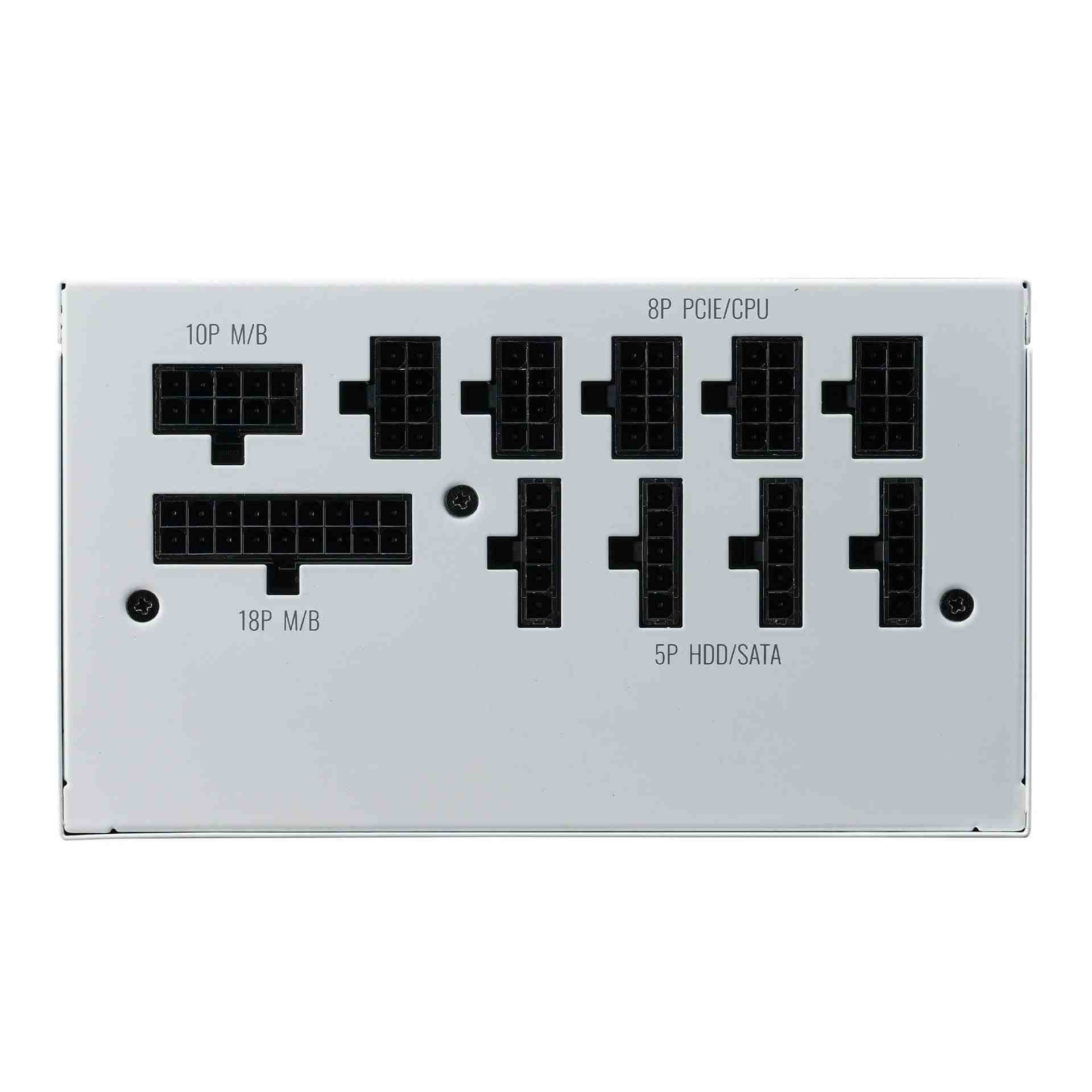

| ATX 24-pin connectors | 1 |
| EPS 4+4 pin connectors | 1 |
| EPS 8 pin connectors | 1 |
| SATA connectors | 12 |
| Peripheral 4-pin connectors | 4 |
| PCI-E 6+2 pin connectors | 4 |
| Series | V Gold |
| Modular | Full Modular |
| Wattage | 700-750 |
.
Formát zdroje:
ATX
Konektory:
SATA 15-pin
Konektory:
PCIe 8-pin
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Gold
Modulární kabeláž:
Ano
Výkon zdroje (W):
750
