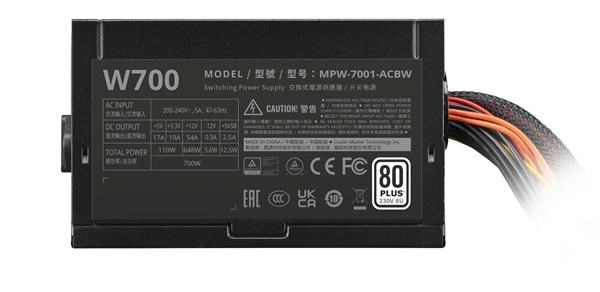

    Cooler Master zdroj Elite NEX W700 230V A/EU Cable, 700W

    Formát zdroje:ATX; Výkon zdroje (ve W):700; Konektory:PCIe 8-pin, SATA 15-pin; Konektory pro základní desku:ATX 24-pin, EPS 8-pin.

    Kód produktu1566242
    Part numberMPW-7001-ACBW-BEU
    EAN produktu4719512130254

    Záruka:3 Rok(ů)
    Výrobce:CoolerMaster
    Skladová dostupnost:skladem u dodavatele, expedice do 24 hodin
    Vaše cena bez DPH
    1390.91 Kč
    Vaše cena včetně DPH
    1683 Kč






    Přidat produkt k porovnání >
    Popis
    Parametry

    ELITE NEX 230V

    The Elite NEX White power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, Active PFC, and 3 years warranty deliver a PSU that provides function you can count on. This power supply unit has been engineered for reliability. The Elite NEX is a complete solution, offering performance and stability at an affordable price.

    • Active PFC + Dual Forward Topology Design : Constructed with protective measures normally found in high-end power supplies to increase safety and current stability.
    • High Temperature Resistance : Capable of operating at 40°C under full load allowing a longer lifespan in warmer environments.
    • Peak Power Tolerance : Can reliably push an additional 100W at peak power load for up to 20 seconds.
    • 80 PLUS White EU 230V Efficiency : Maintains a higher efficiency of 85% at typical load.
    • Durable, Reliable, and Safe : Will perform consistently in whatever environment whether it's high altitudes or ultra humid settings.
    • 3 Year Warranty : This unit comes with a standard limited manufacturing warranty of 3 years from the date of purchase.

    TECHNICAL SPECIFICATIONS

    ATX Version ATX12V Rev. 2.41
    PFC Active PFC
    Input Voltage 200 - 240V
    Input Current 5A
    Input Frequency 50 - 60Hz
    Dimension (L x W x H) 140 x 150 x 86mm
    Fan Size 120mm
    Fan Bearing Sleeve Fan
    Efficiency >= 85% @ Typical Load
    ERP 2014 LOT 3 Yes
    Operating Temperature 0 - 40°C
    Power Good Signal 100 - 500 ms
    Hold Up Time >= 10ms at 100% Load
    MTBF >100,000 hours
    Protections OVP / OPP / SCP / UVP / OTP / Inrush Protection
    Regulatory TUV,cTUVus,CE,FCC,CCC,EAC,UKCA
    ATX 24-pin Connnectors x1 = 1x (550mm)
    EPS 4+4 Pin & EPS 8Pin x2 = 1x [550(8Pin)+120(4+4Pin)mm]
    SATA Connectors x2 = 1x (400+150mm); x3 = 1x (400+150+150mm)
    Peripheral 4-pin Connectors x3 = 1x (400+150+150mm)
    PCI-E 6+2 pin Connectors x2 = 1x (500+120mm)

    .
    Formát zdroje: ATX
    Konektory: SATA 15-pin
    Konektory: PCIe 8-pin
    Konektory pro základní desku: ATX 24-pin
    Konektory pro základní desku: EPS 8-pin
    Výkon zdroje (W): 700
