Club3D Dokovací stanice USB-A nebo USB-C Dual Display 4K60Hz (6x USB 3.0/2x DP/Ethernet/USB-B/2x audio)
USB 3.0 Dual Display 4K60Hz Docking Station

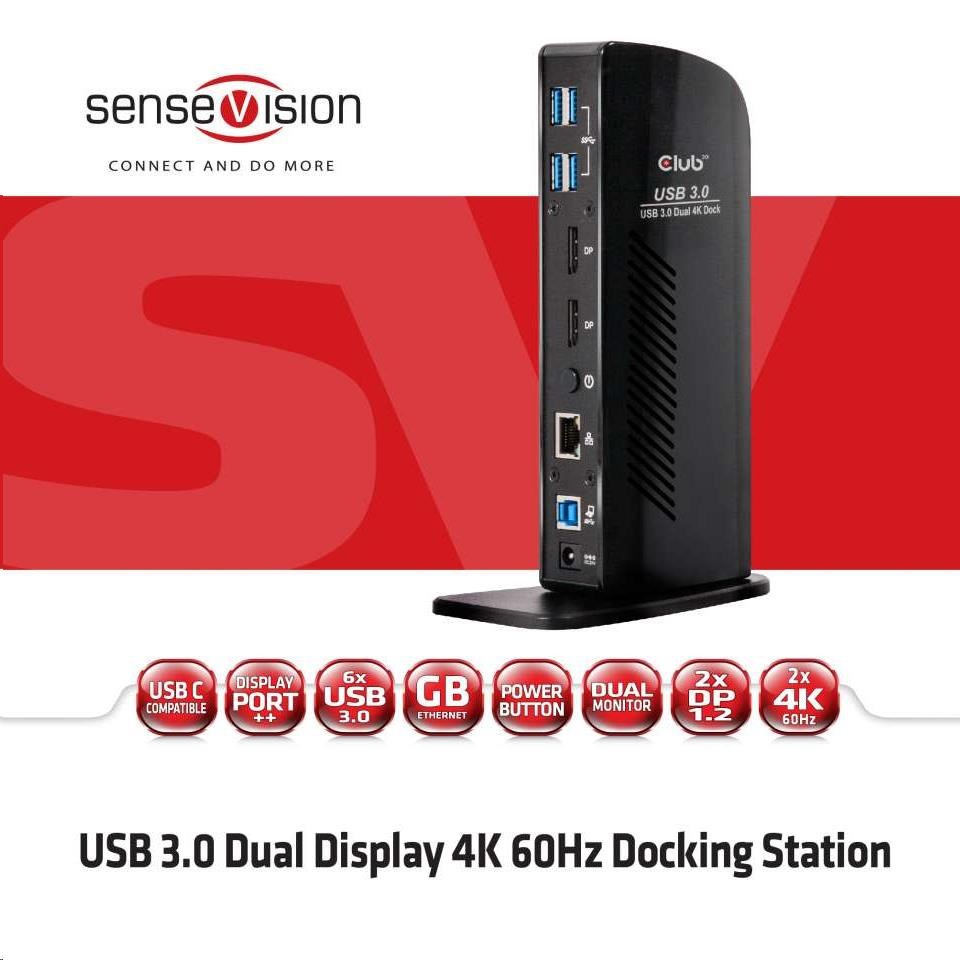

CSV-1460 - The SenseVision USB 3.1 Gen 1 Dual Display 4K 60Hz Docking Station is designed to satisfy all your connectivity demands. It provides no less than 6 USB 3.1 Gen 1 Ports, Headphone connection, Microphone connection, Gigabit Ethernet port and 2 x Displayport™ outputs.
It is fully USB C compatible and a USB C cable is included in the box.
With this CSV-1460 you can now connect two Screens at 3840x2160 UHD at 60Hz resolution to almost all existing Notebooks or Tablets just by using a single USB 3.1 Gen 1 port! Featuring the advanced DisplayLink™ DL-6950 chip, you can even connect one screen at a resolution of 5K at 60Hz!
The SenseVision USB 3.1 Gen 1 Dual Display Docking Station has a convenient design and detachable stand, allowing it to be placed on your desk in horizontal- or vertical position. It's a productivity enhancing tool for any power user working in a (semi) professional environment.
Dual Mode DisplayPort™
The SenseVision USB 3.1 Gen 1 Dual Display 4K 60Hz Docking Station has 2 Displayport™++ outputs or in other words, Displayport™ 1.2 Dual Mode. This means that for the conversion of the video signal to DVI or HDMI™ passive cables or adapters must be used.
TECHNICAL SPECIFICATIONS
| Product Name | USB 3.1 Gen 1 Dual Display 4K 60Hz Docking Station |
| Product Series | SenseVision |
| Weight | 395g |
| Cable Length | 270 mm |
| Item Code | CSV-1460 |
| EAN | 8719214470777 |
| UPC Code | 841615100965 |
| Input | 1x USB 3.1 Gen 1 B male 1x DC 5v female |

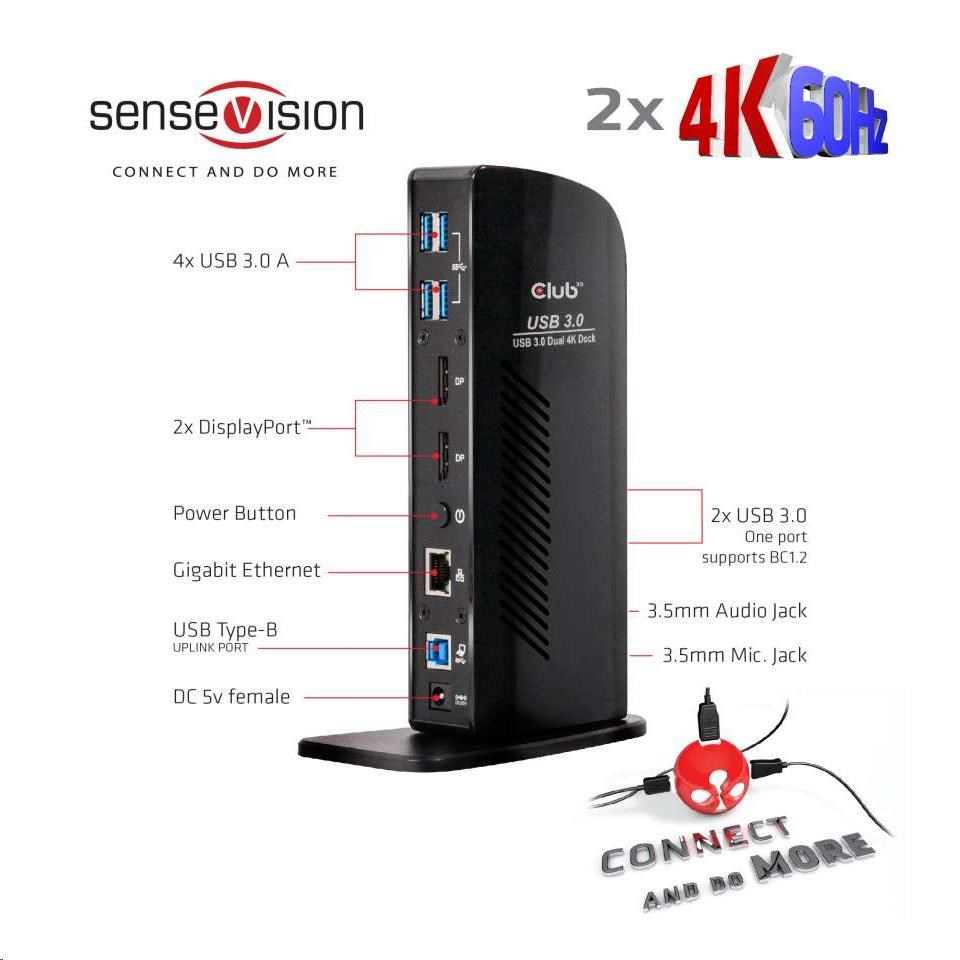

| Output | 2x Displayport™ 6x USB A 3.1 Gen 1 1x Gigabit Ethernet port 1x 3.5mm Audio jack 2.1 ch 1x 3.5mm Mic jack |
| Features | • Portable Universal USB 3.1 Gen 1 Dual Display 4K 60Hz Docking Station • Fully USB C compatibel with USB C cable included in the box • DisplayLink™ DL-6950 chip inside • Supports dual External monitors via Displayport™ • Max supported resolution up to: For Single Screen Setup: 5120x2880 @ 60Hz For Dual Screen Setup: 2 x 3840x2160 @ 60Hz • USB 3.1 Gen 1 downstream port x 6 (BC 1.2 quick charging x1) • Supports Gigabit Ethernet (10/ 100/ 1000Mbps) • Audio: 2 x 3.5 mm Jack for Headphone and Microphone |

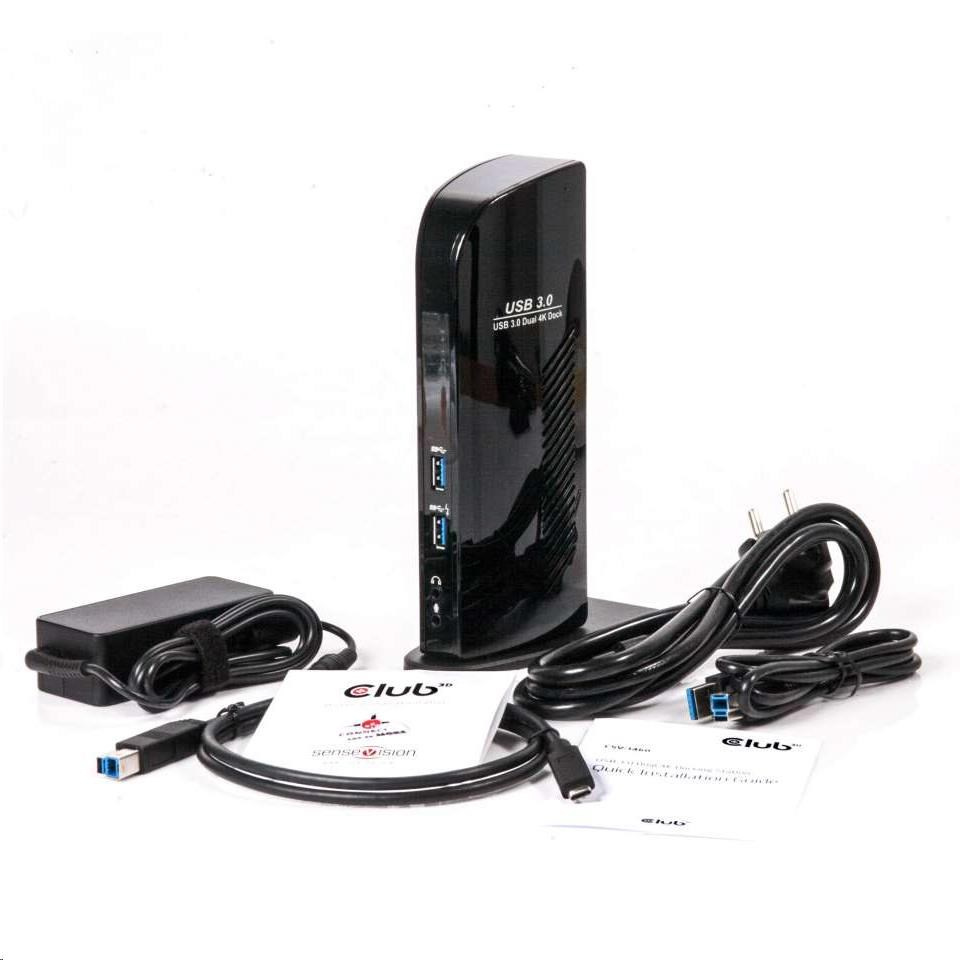

| Package Contents | USB 3.1 Gen 1 Dual Display 4K 60Hz Docking Station Power Adapter 20V/2.25A 2x USB 3.1 Gen 1 cable (USB Type-A to B, 1 meter and USB Type C to B 1meter) Quick install guide |
| Supported Operating Systems | Microsoft Windows 8.1/10 |
