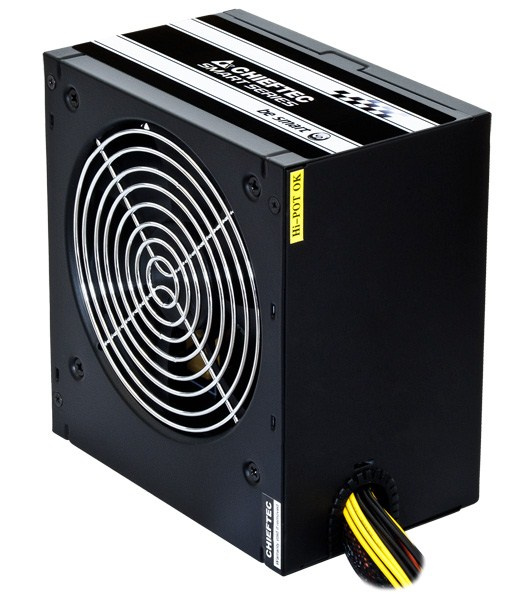

CHIEFTEC zdroj Smart Series, GPS-700A8, 700W, Active PFC, retail
Popis
Parametry
http://www.chieftec.eu/en/psus/smart-series/gps-700a8.html
| AC Input:
| 230V / 4A
|
| Frequency:
| 47-63 Hz
|
| +5V:
| 22A
|
| +3,3V:
| 22A
|
| +5V & +3,3V combined:
| 120W
|
| +12V 1:
| 54A / 648W
|
| +12V 2:
| N/A
|
| +12V 1 & +12V 2 combined:
| N/A
|
| +12V 3:
| N/A
|
| +12V 4:
| N/A
|
| +12V 3 & +12V 4 combined:
| N/A
|
| P.F.:
| >0,9
|
| -12V:
| 0,3A / 3,6W
|
| +5VSB:
| 2,5A / 12,5W
|
| Maximum Load:
| 700W
|
Connectors:
| 20+4PIN: |
===500mm===[20+4PIN]
SATA:
===500mm===[SATA]===150mm===[SATA]===150mm===[SATA]
SATA:
===500mm===[SATA]===150mm===[SATA]===150mm===[SATA]
Molex/Floppy:
===500mm===[Molex]===150mm===[Molex]===150mm===[Floppy]
8PIN EPS (4+4):
===500mm===[8PIN EPS]
8PIN PCIe (6+2):
===500mm===[PCIe]===150mm===[PCIe]
.
Formát zdroje:
ATX
Konektory:
PCIe 8-pin
Konektory:
FDD
Konektory:
Molex
Konektory:
SATA 15-pin
Konektory pro základní desku:
ATX 24-pin
Konektory pro základní desku:
EPS 8-pin
Efektivita zdroje:
85+
Modulární kabeláž:
Ne
Výkon zdroje (W):
700
