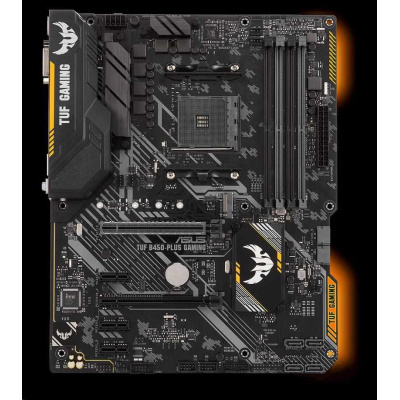

ASUS MB Sc AM4 TUF GAMING B450-PLUS II, AMD B450, 4xDDR4, 1xDP, 1xHDMI
Popis
Parametry

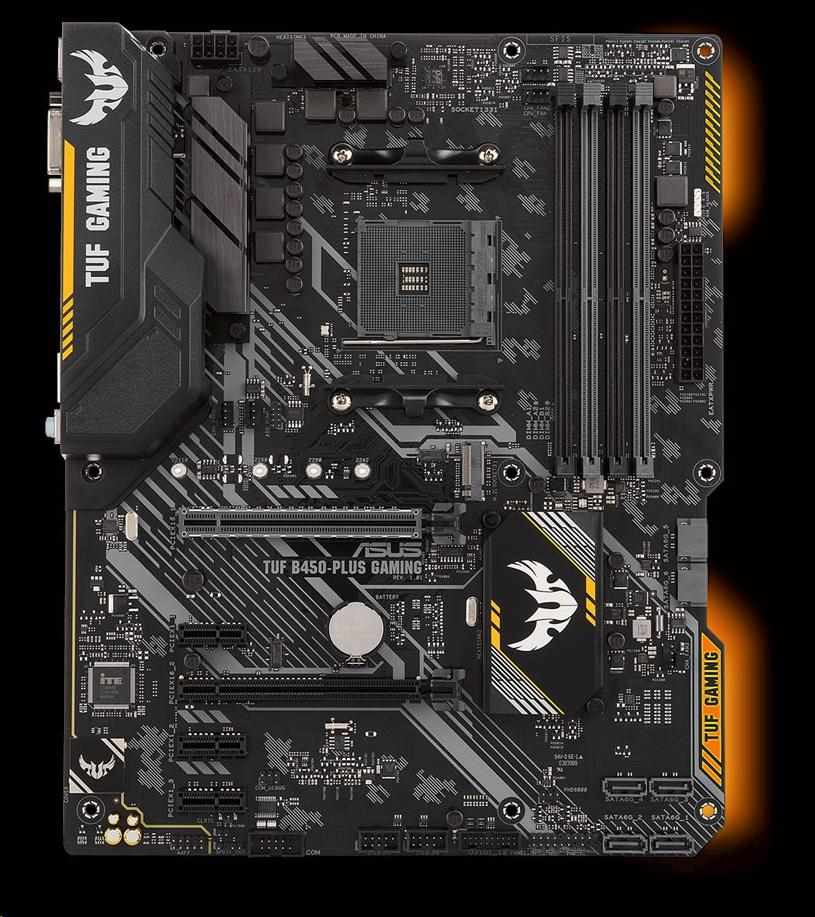

TUF GAMING B450-PLUS II
AMD B450 (AM4) ATX gaming motherboard with dual M.2, AI Noise-Canceling Microphone, HDMI, DisplayPort, USB 3.2 Gen 2 Type-A and Type-C and Aura Sync RGB lighting support
- Comprehensive cooling: VRM heatsinks, PCH heatsink, Fan Xpert 4 core
- Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
- Aura Sync RGB Lighting: Synchronise LED lighting with a vast portfolio of compatible PC gear
TECHNICAL SPECIFICATIONS
| CPU | AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors * Refer to www.asus.com for CPU support list |
| Chipset | AMD B450 |
| Memory | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 1 x DisplayPort 1.2 1 x HDMI 2.0b *Graphics specifications may vary between CPU types. |
| Multi-GPU Support | Supports AMD CrossFireX™ Technology |
| Expansion Slots | 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) |
| 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) | |
| AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x4 mode) | |
| AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *1 3 x PCIe 2.0 x1 | |
| Storage | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 AMD Athlon™ with Radeon™ Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors: 2 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 AMD B450 chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*3 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN | Realtek® L8200A TUF LANGuard |
| Audio | Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *4 Audio Feature: - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
| USB Ports | Rear USB Port (Total 8) 2 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) |
| Front USB Port (Total 6) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) | |
| Special Features | ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Precision control for stable power - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner - Armoury Crate - BIOS FlashBack™ Button ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS FlashBack™ - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Armoury Crate |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise-Canceling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 core - EZ update - PC Cleaner TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED AURA Sync - AURA RGB headers |
| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 5 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 2 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit Windows® 7 64-bit *5 |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Note | *1 PCIE x16_2 will be unavailable when installing M.2 PCIE SSD in M.2_2 socket. PCIe x16_2 will run x2 when installing devices in PCIe x1_1 or PCIe x1_2 slots. PCIE x16_2 will run x4 when no devices installing in PCIE x1_1 and PCIE x1_2 slots. *2 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. *3 PCIe x16_2, PCIe x1_1, and PCIe x1_2 slots will be unavailable when installing M.2 PCIe SSD in M.2_2 socket. *4 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. *5 Install an AMD Ryzen™ 2nd Generatione or Ryzen™ 1st Generation Processors to support Windows 7 64-bit operating system. |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Chipset:
AMD
PCI Express x16:
1
Podpora RAID:
1
Podpora RAID:
10
Formát základní desky:
ATX
3.5mm Jack:
Ano
